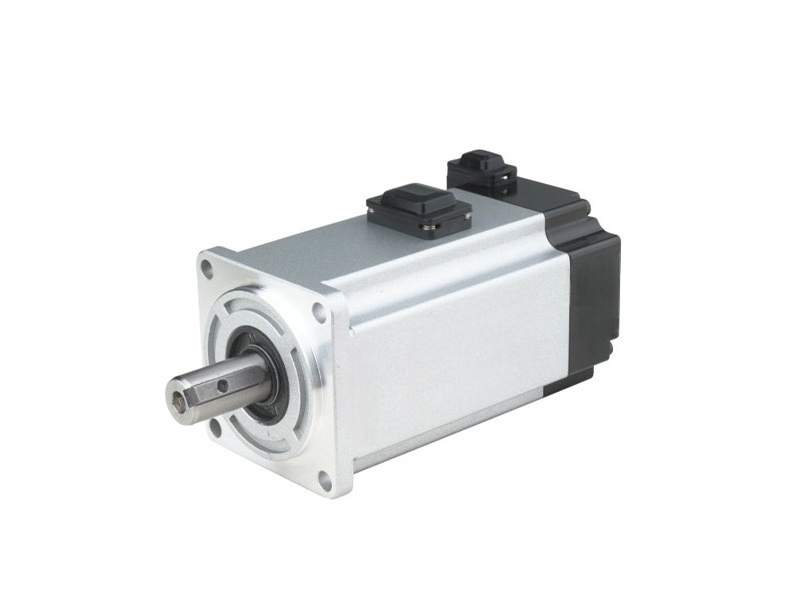

口60-600W,AC servo motor
Compact size (industry's shortest dimension)
High protection (IP65/67 protection rating)
Simple and elegant (bright color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 220
Rated Torque(N·m） : 1.91
Rated Current(A) : 3.7
Length (mm) : 139.5/110.1
Color : Sliver
Encoder : M17/E23
Brake : E/F
Connector Type : 1-AMP/4-Plug in
Rated Rotate Speed(rpm) : 3000
口80-750W,AC servo motor
Compact size (industry's shortest dimension)
High protection (IP65/67 protection rating)
Simple and elegant (bright color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 220
Rated Torque(N·m） : 2.39
Rated Current(A) : 4.1
Length (mm) : 126.7/95.7
Color : Sliver
Encoder : M17/E23
Brake : E/F
Connector Type : 1-AMP/4-Plug in
Rated Rotate Speed(rpm) : 3000

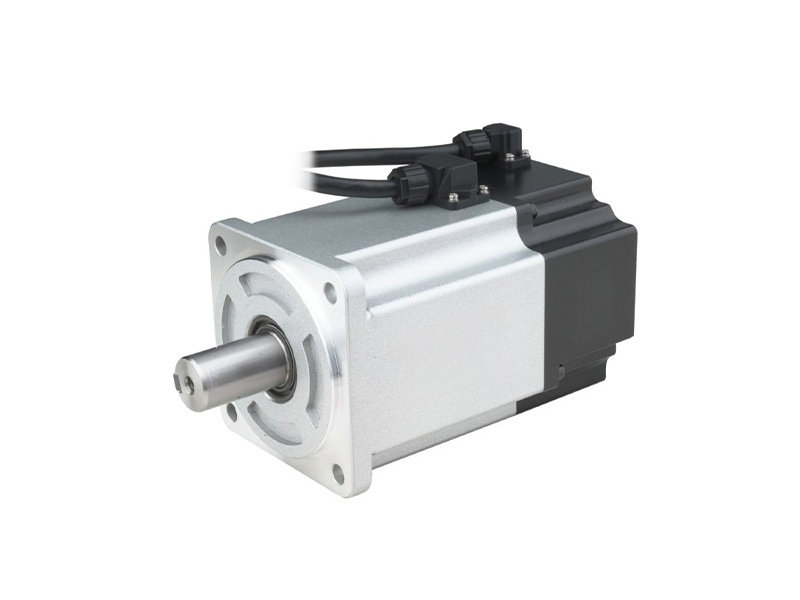

口80-1000W,AC servo motor
Compact size (industry's shortest dimension)
High protection (IP65/67 protection rating)
Simple and elegant (bright color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 220
Rated Torque(N·m） : 3.18
Rated Current(A) : 5.7
Length (mm) : 139.7/108.7
Color : Sliver
Encoder : M17/E23
Brake : E/F
Power(W) : 1000
Frame : 80
Connector Type : 1-AMP/4-Plug in
Rated Rotate Speed(rpm) : 3000

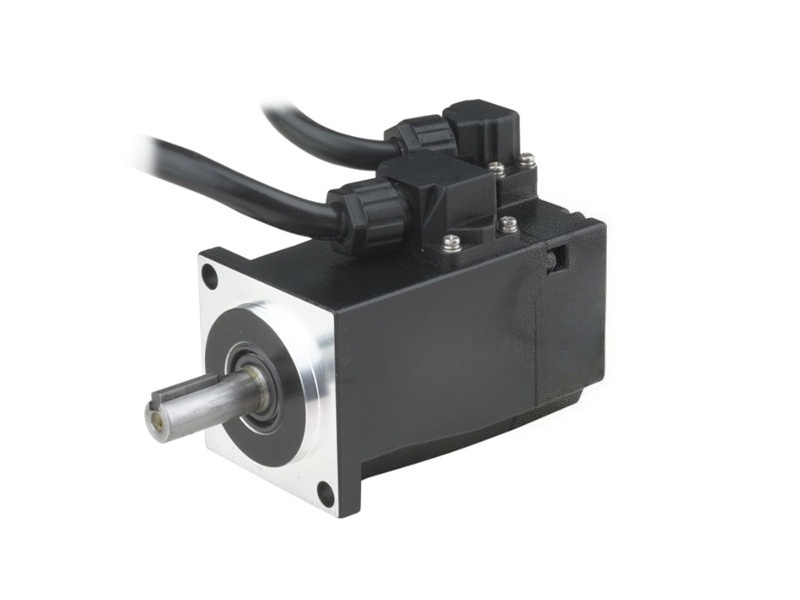

口40-50W ,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 0.16
Rated Current(A) : 3
Length (mm) : 84/56.7
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 50
Frame : 40
Connector Type : 3-Aircraft plug
Rated Rotate Speed(rpm) : 3000

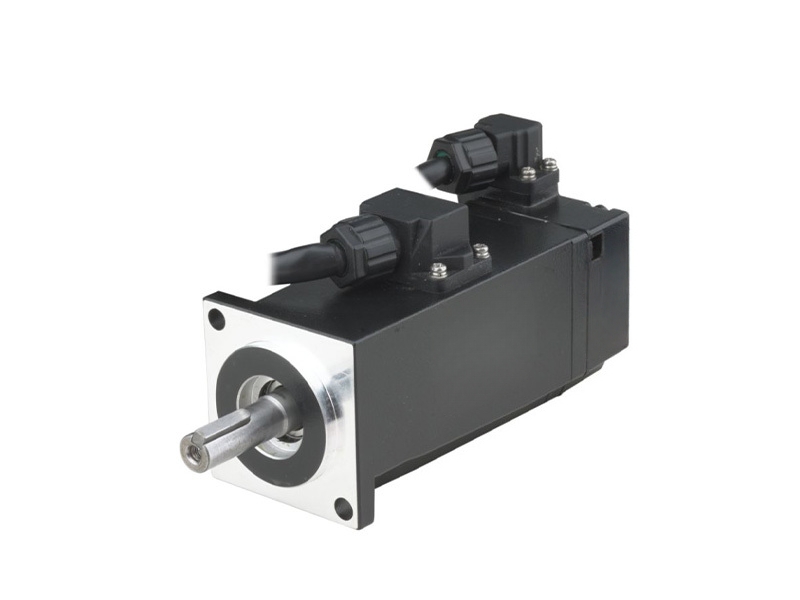

口40-100W,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 0.32
Rated Current(A) : 5.7
Length (mm) : 95/67.7
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 100
Frame : 40
Connector Type : 3-Aircraft plug
Rated Rotate Speed(rpm) : 3000

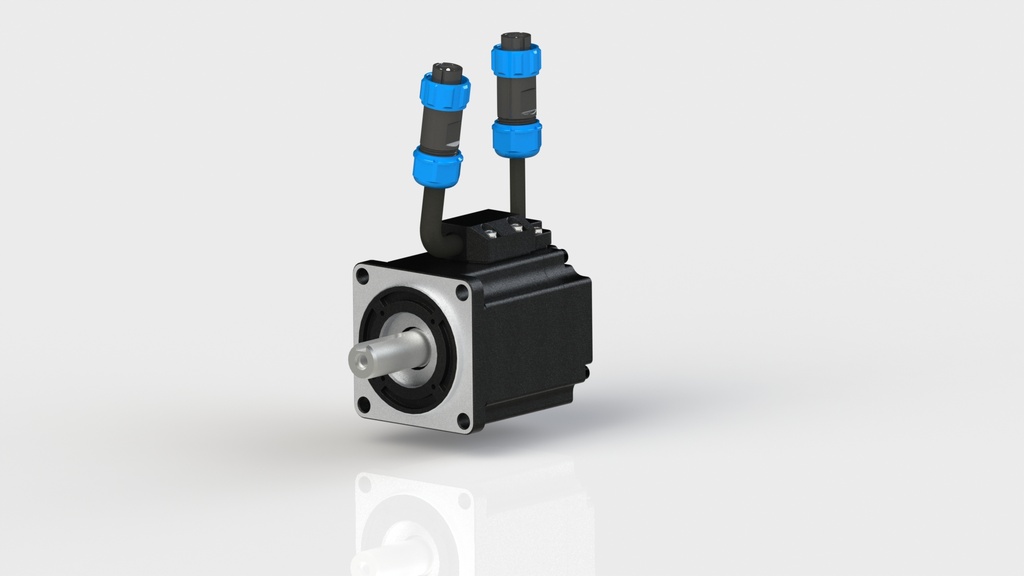

口60-200W,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 3000
Rated Current(A) : 10
Length (mm) : 101.1/71.8
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 200
Frame : 60
Connector Type : 3-Aircraft plug

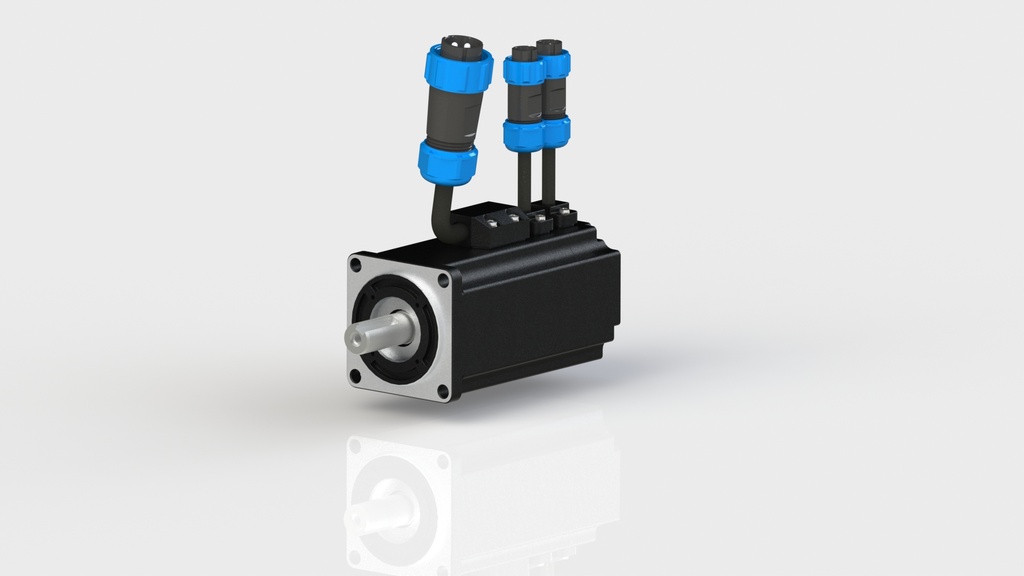

口60-400W ,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 1.27
Rated Current(A) : 19.9
Length (mm) : 117.9/88.6
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 400
Frame : 60
Connector Type : 3-Aircraft plug
Rated Rotate Speed(rpm) : 3000

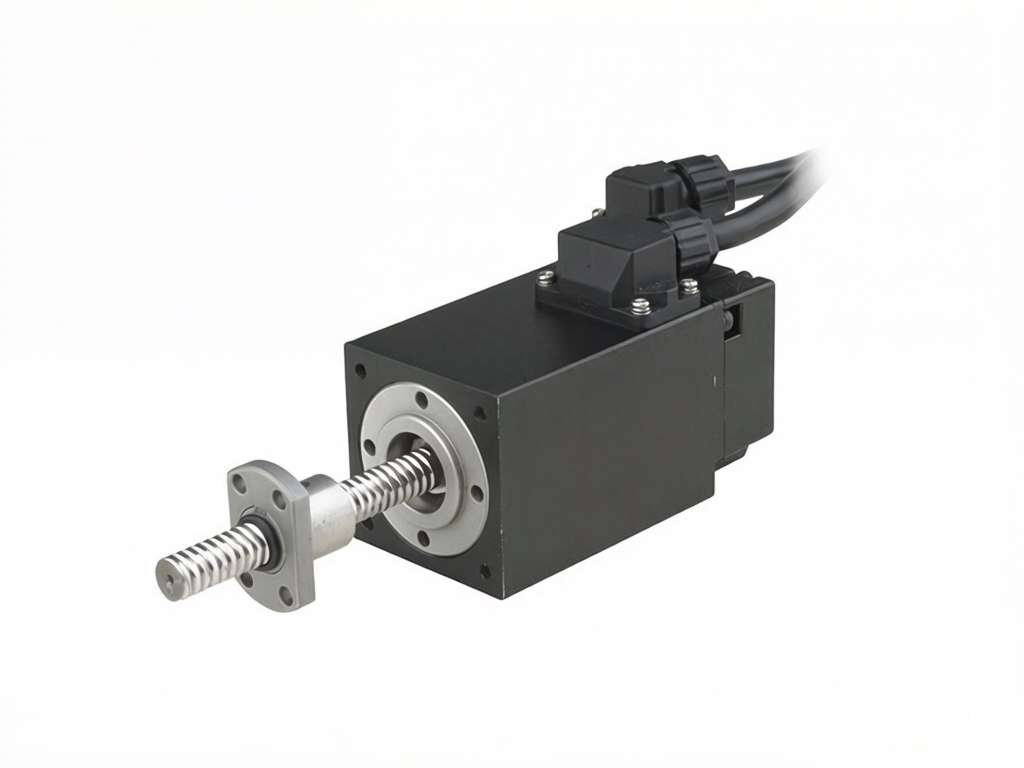

Motor Module
Contact Us
Encoder : M17/E23
Power(W) : 50-1000
Frame : 40/60/80

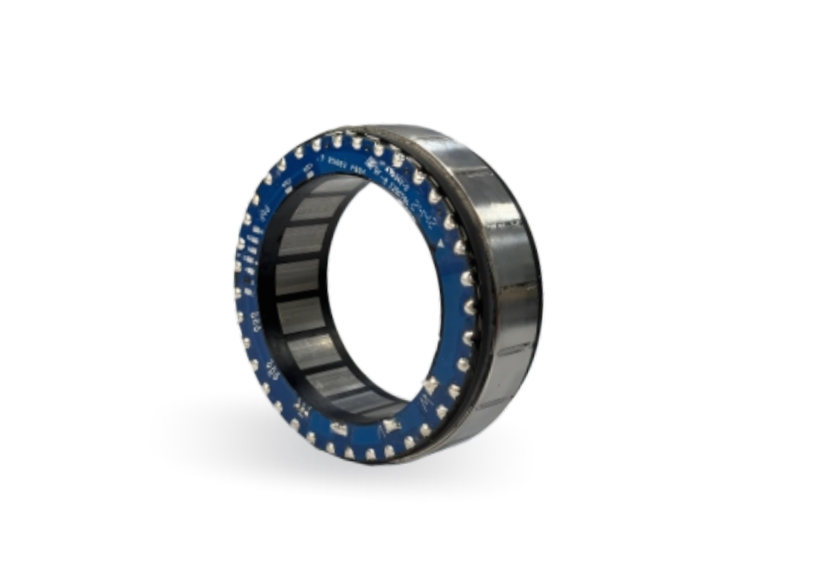

Frameless Motors
Low temperature rise: Motor loss reduced by 20%
High density: Motor torque increased by 10%
Long-range battery life: Extended battery duration
Product Composition:
UVW Power Cable ,Stoop Loop ,Magnetic Steel, Stator Core, Potting Adhesive
Note: Hall Temperature Sensors and Outlet Forms are optional.
Contact Us
External Diameter : 50/70/85/115 mm
Voltage(V) : 24-380
temperature sensor : T/P/N/S
Hall sensor : H/X/N/S

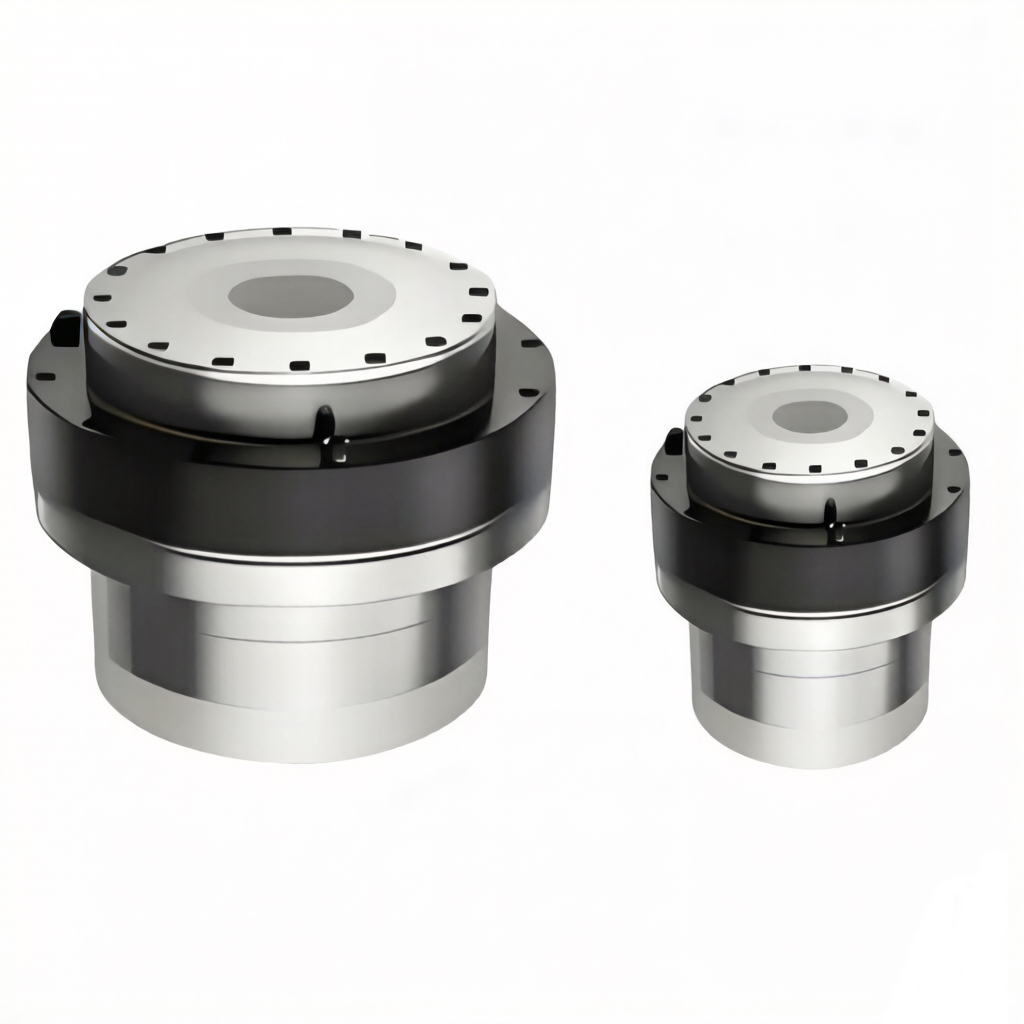

HJ-Humanoid Joint Solution
Gear Ratio:51-161
Peak Torque(Nm):3.3-390
Rated torque(Nm): 1.8-36.3
Rated Speed(RPM): 4.6 - 180
Other load models can be customized in detail.
Contact Us
Brake : E/F
Voltage(V) : 24/48
Module outer diameter : 40-80
Length and load-bearing capacity : F/H/T
Diver : D

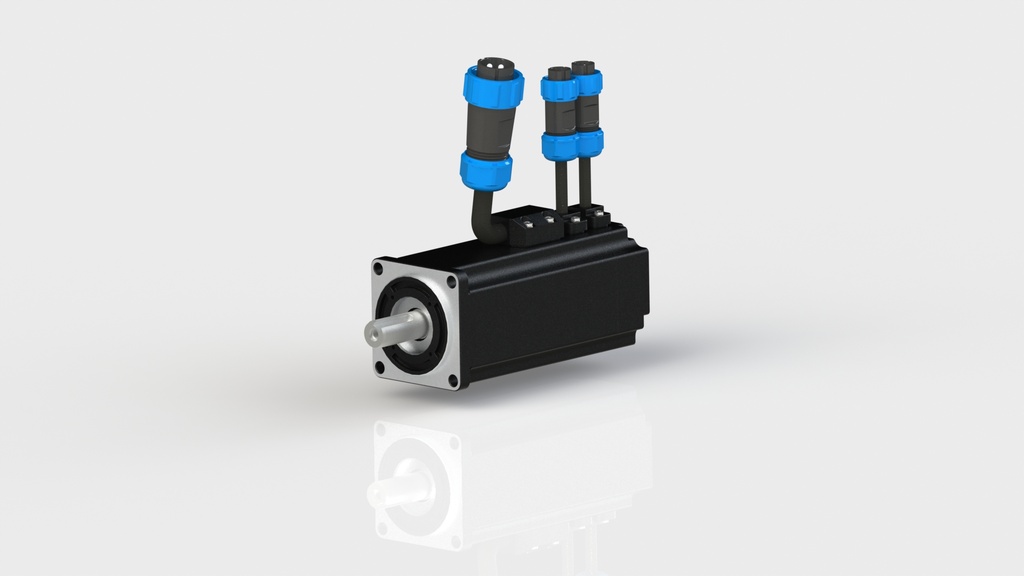

口60-600W,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 1.91
Rated Current(A) : 15
Length (mm) : 138.1/108.6
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 600
Frame : 60
Connector Type : 3-Aircraft plug
Rated Rotate Speed(rpm) : 3000

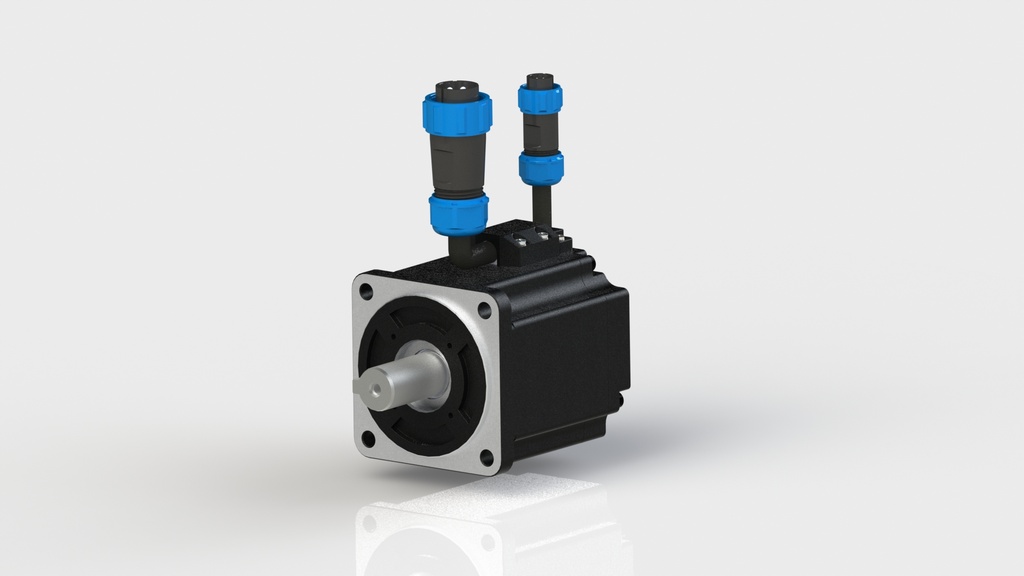

口80-750W,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 2.39
Rated Current(A) : 19
Length (mm) : 121.9/90.9
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 750
Frame : 80
Connector Type : 3-Aircraft plug
Rated Rotate Speed(rpm) : 3000

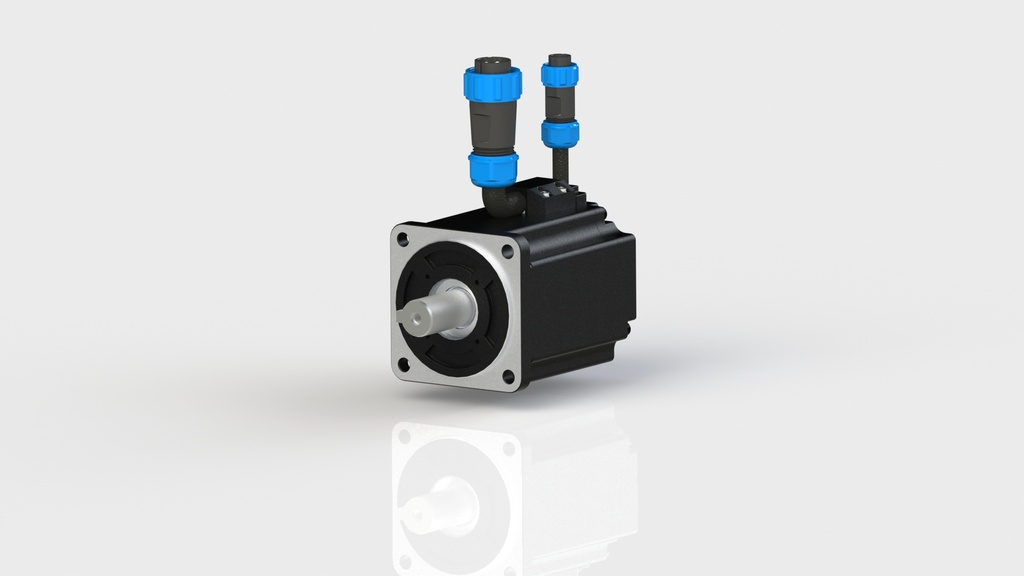

口80-1000W,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Contact Us
Rated Voltage(V) : 48
Rated Torque(N·m） : 3.2
Rated Current(A) : 28
Length (mm) : 134.9/103.9
Color : Black
Encoder : M17/E23
Brake : E/F
Power(W) : 1000
Frame : 80
Connector Type : 3-Aircraft plug
Rated Rotate Speed(rpm) : 3000
