Fabrication and Assembly
Cut. Bend. Weld. Finish.
Assemble. Ship.
Full-service sheet metal fabrication and assembly - fiber and CO2 laser cutting, CNC punching, press-brake forming, multi- process welding, surface finishing, and mechanical assembly. One PO from DFM review to packaged, inspected, ready-to-install product.
Capabilities
Every step of the fabrication process under one roof - and one contract. Combine operations in a single setup to cut cycle time and eliminate the handling errors that come with juggling multiple vendors.

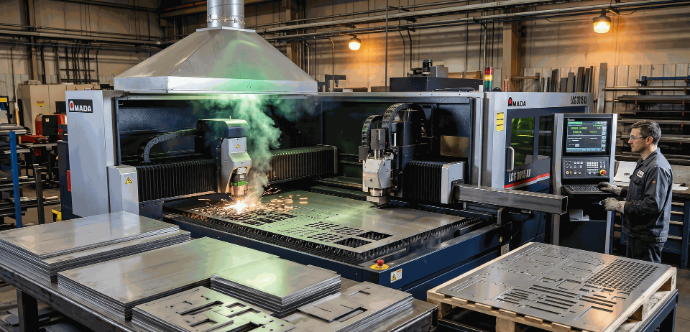

Laser Cutting and Punching

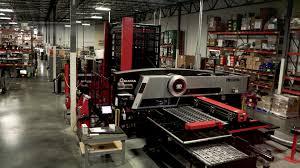

Fiber and CO2 laser cutting on Japanese-built Amada-class systems for sheet and tube, plus CNC punching for high- speed feature work. Combined laser-and-punch in one setup eliminates re-registration errors.

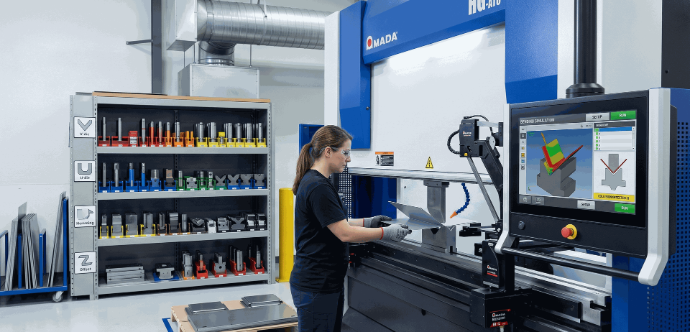

CNC Bending
Amada HDS and HG series press brakes driven by bending- simulation software. A deep in-house tooling library covers typical V-die, U-die, hemming and offset setups with minimal setup time.
Welding
Gas Metal Arc Welding (GMAW / MIG), Flux-Cored Arc Welding (FCAW) and Gas Tungsten Arc Welding (GTAW / TIG) on certified equipment. Welds are inspected and finished to match the surrounding surface quality.
Surface Finishing

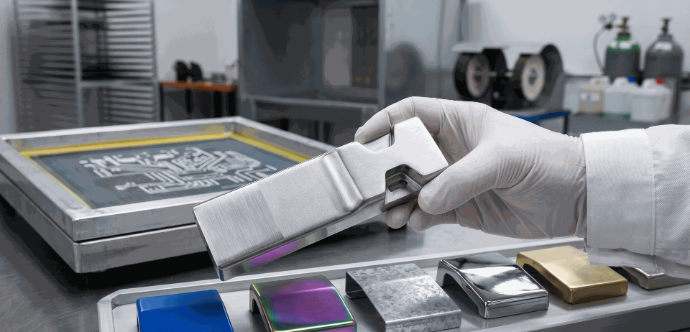

Powder coat (full RAL palette), PVD, galvanizing, electroplating, brushing, sanding, polishing and screen printing - all in-house so finishing cycles fold directly into the fabrication lead time.

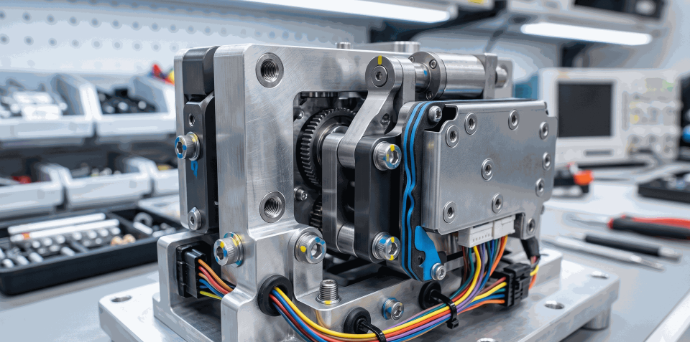

Mechanical Assembly
Full mechanical sub-assembly and final assembly - press- fit inserts, rivet nuts, bonded gaskets, wire harnesses and torqued fasteners. Parts arrive inspected, packaged and ready to install.

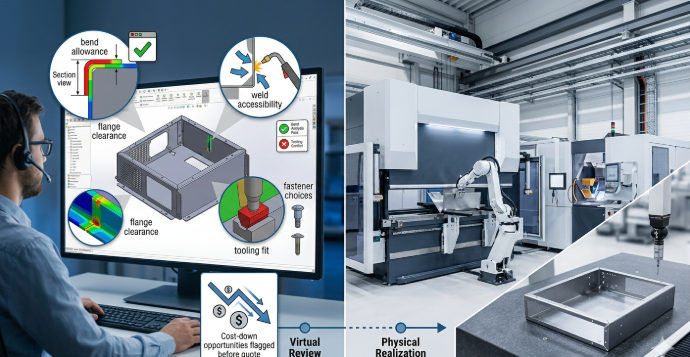

End-to-End DFM
Before a single sheet is cut we run a Design-for- Manufacturability review: bend allowance, flange clearances, weld accessibility, tooling fit, fastener choices. Cost-down opportunities flagged before quote.
Built on proven equipment
Japanese-built production systems for fabrication-grade precision.
Amada laser & punch
Sheet, plate and tube cutting
Amada HDS / HG brakes
With bending simulation software
Hitachi welders
GMAW, FCAW, GTAW capable
Finishing line
Powder coat, plating, polishingFrequent machine calibration. Operators complete 300+ hours of factory training before touching production work.
From DFM to packaged assembly
A seven-stage workflow designed so each step catches issues before they become scrap. You send a CAD; you receive an inspected, finished and packed product.
DFM review
We validate your CAD against bend allowances, minimum flange lengths, hole-to-edge spacing, weld access and finishing compatibility. Cost-down suggestions flagged before a quote issues.
Nesting and cutting
Parts are nested for yield, then cut on fiber or CO2 laser (sheet and tube). Thicker plate routes to CNC plasma; precision sheet work runs on the Amada laser-punch combo.
Forming
Press-brake bending with simulation software to confirm final geometry. Roll-forming for cylindrical sections. In-house die library means most setups skip external tooling lead times.
Welding
GMAW, FCAW or GTAW per the drawing. Welds are visually inspected, then ground and finished to match the surrounding surface before they hit the finishing line.
Finishing
Powder coat, PVD, anodize, galvanize, electroplate, screen print or brushed mechanical finish. Parts are masked and handled to preserve critical features.

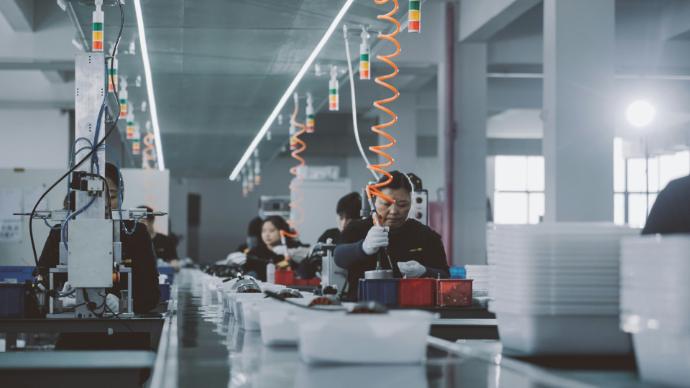

Assembly
Mechanical assembly, fastening, harnesses, gaskets, sub-assembly integration. Optional kitting for downstream lines.
Inspection and packaging
Documented QC inspection, secure NDA-compliant packaging and the Incoterm of your choice - Ex Works, FCA, FOB, CIF, DDP, DDU.
Materials we fabricate
Steel, stainless and non-ferrous sheet stock across the grades used in enclosure, structural and decorative applications. Need something not listed? Submit the spec.
Carbon and structural steel
| Grade | Key property | Typical use |
|---|---|---|
| SS400 | 400 - 510 MPa tensile | Structural, frame, bracketry |
| SPHC-P | ≥270 MPa, hot-rolled pickled | Heavier sheet, weldments |
| SPCC | ≥270 MPa tensile, cold-rolled | Smooth-surface sheet |
| SECC | 300 - 400 MPa, electro-galvanized | Enclosures, cabinets |
| SGCC | ≥270 MPa, hot-dip galvanized | Outdoor, rust-critical parts |
Stainless steel
| Grade | Key property | Typical use |
|---|---|---|
| SAE 304 / 304L | 515 MPa, 18/8 austenitic | General stainless, food contact |
| SAE 316 / 316L | 485 - 515 MPa, molybdenum-added | Marine, chemical, medical |
L grades (low-carbon) are standard for welded assemblies to prevent inter-granular corrosion.
Aluminum and alloys
| Grade | Key property | Typical use |
|---|---|---|
| 6061-T6 | 241 - 290 MPa tensile | Structural enclosures, brackets |
| 5052 | Good formability, corrosion-resistant | Deep-drawn panels |
| 6063-T5 | Extrudable, good anodize response | Architectural profiles |
Lightweight, excellent corrosion resistance, high thermal conductivity. Ideal for EV and electronics enclosures.
Copper
| Grade | Key property | Typical use |
|---|---|---|
| C101 / C110 | ≥207 MPa tensile | Busbars, conductive bracketry |
| Brass (C260 / C360) | Free-cutting, decorative | Hardware, fittings |
Highly conductive and malleable; common in electrical and decorative applications.
Manufacturing specifications
Sheet and plate range
- Maximum sheet length: 3,000 mm
- Thickness range: 0.3 mm to 20 mm
- Tube and pipe cutting supported on fiber laser
Geometric tolerances
- Flatness: ≤0.2 mm on finished panels
- Verticality: plus or minus 0.15 mm
- Laser cut edge: clean, dross-free on standard grades
- Bend angle tolerance: plus or minus 0.5 degrees standard
Run size
- Single custom pieces through 10,000+ unit production runs
- Same setup scales from prototype to series production
- Setup amortization bundled into quoted price
Surface finishes available in-house
Every finish below runs inside our facility - no vendor hop, no shipping lag between operations.
Powder Coat
Full RAL palette, matte to high-gloss
PVD
Physical Vapor Deposition for wear and decorative finish
Anodize
Clear, dyed and hard Type III on aluminum
Galvanize
Hot-dip galvanizing for outdoor steel
Electroplating
Zinc, nickel, chrome finishes
Brushed / Sanded
Mechanical grain finishes on stainless and aluminum
Polishing
Mirror and satin polish on stainless, brass, copper
Screen Printing
Logos, labels, graphics direct-to-surface
Industries we serve
Fabricated parts and assemblies that ship on six continents, across the applications that demand precision and repeatability.
Automotive and EV
Body-in-white sub-assemblies, EV battery enclosures, EV charge point housings, brackets and trim.

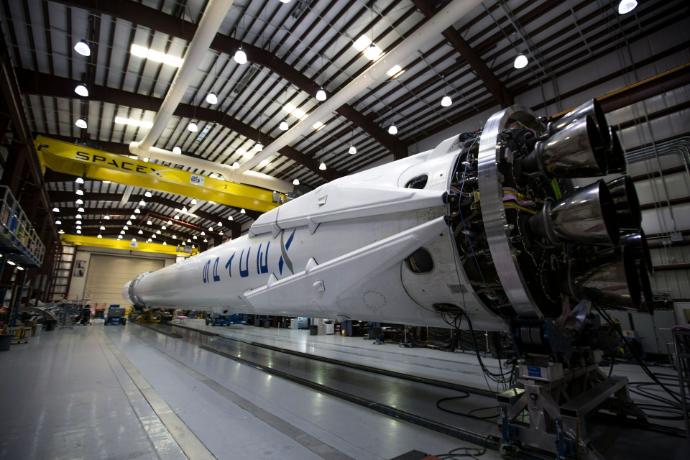

Aerospace
Lightweight aluminum panels, cabin component housings, ground-support equipment fabrications.
Electronics and Networking
Server chassis, computer cases, network and data-center cabinets, PCB-level enclosures and heatsink assemblies.
Medical and Dental
Equipment enclosures, cart chassis and trolleys, lab bench assemblies - usually in 304/316 stainless with brushed finish.
Kitchen and Culinary
Commercial kitchen equipment, food-grade stainless counters, canopies, racks and cabinetry.
Industrial Machinery
Machine enclosures and safety guards, control cabinets, ducting, structural frames, white-goods housings and architectural kiosks.
Lead times and quote turnaround
Predictable timing at every stage - so you can plan your build against a real schedule.
Standard quote
Simple parts with complete DXF or STEPComplex design quote
Multi-step assemblies, DFM collaborationSample production
Depends on complexity and surface treatmentQuality and confidentiality
Audited quality, with NDA-level drawing control.
ISO 9001 quality and ISO 14001 environmental management systems govern every run. Sensitive drawings are protected by signed NDA, secure email channels and an electronic drawing control system - the same controls enterprise OEMs require of their tier-1 vendors.
Frequently asked
Send a DXF, STEP or sample. Get a quote in a week.
Submit a 2D DXF or 3D STEP with material, finish, quantity and required Incoterm. You receive a proforma invoice with lead time and a manufacturability review - typically in 5 business days for standard parts, 7 to 10 for complex assemblies.
