Hydraulics. Machining.
Electric Automation.
OEL is a vertically-integrated manufacturing partner for
industrial buyers. Three product pillars: high-cycle hydraulic
cylinders, precision CNC machining and casting, and electric
automation built around LiDAR sensing, servo motors and
drives. Engineered overseas, stocked in the US, shipped to
80+ countries.
Hydraulic Cylinders
Telescopic, welded, tie-rod and custom builds. Bore diameters 1.5" to 12". Pressure ratings to 5,000 psi. Built for dump trucks, construction, and OEM applications.
Machining
CNC milling, turning, die casting, metal stamping and plastic injection molding. Tight tolerances on stainless, carbon steel, aluminum and zinc.
LiDAR Sensing
2D and 3D industrial LiDAR for AGVs, AMRs, automated forklifts and area safety. TUV-certified safety scanners. 270 degree and 360 degree options.
Motors and Drives
Servo systems, linear stepper motors and brushless DC motors. Robotics core components. Drive electronics and control packages.

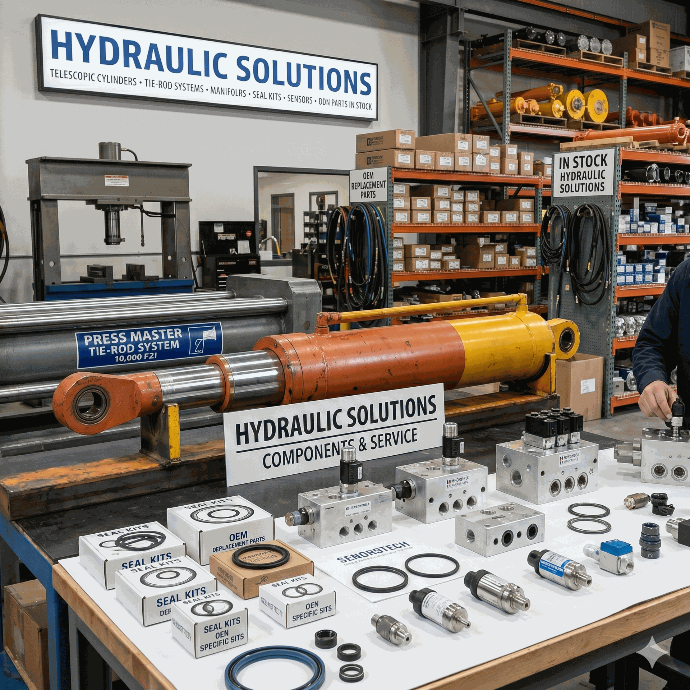

Hydraulic Solutions
From telescopic cylinders for dump trucks to high-pressure tie-rod systems for industrial presses. Seal kits, manifolds, sensors and OEM replacement parts in stock.

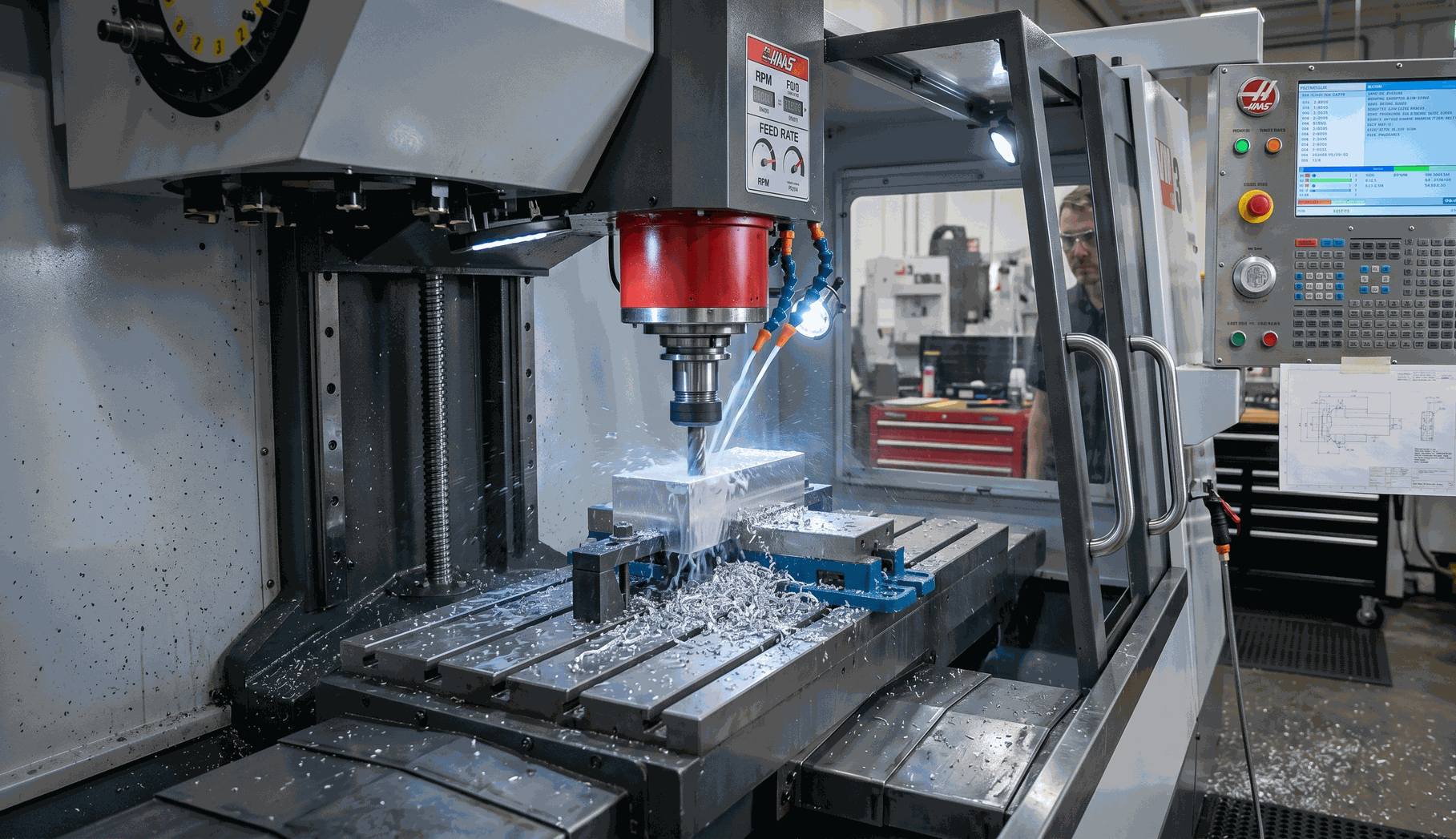

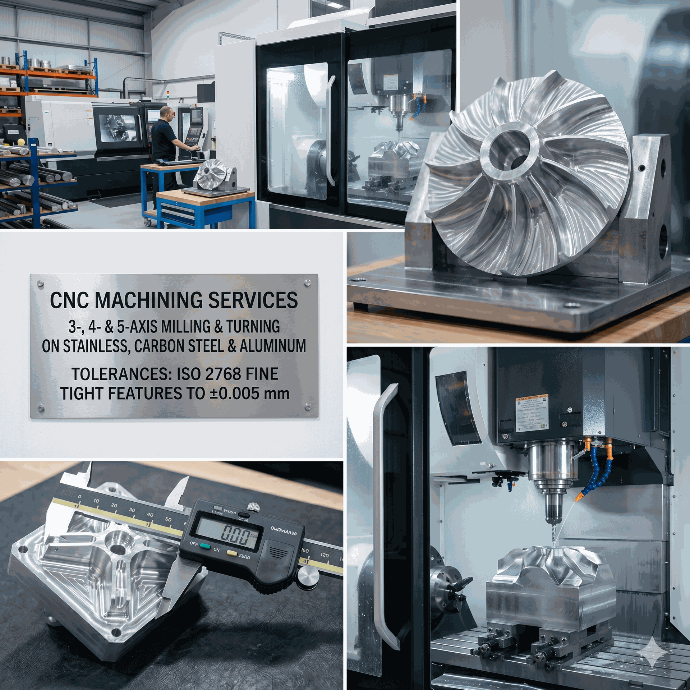

CNC Machining
3-, 4- and 5-axis CNC milling and turning on stainless, carbon steel and aluminum. Tolerances to ISO 2768 fine, tight features held to plus or minus 0.005 mm on request.

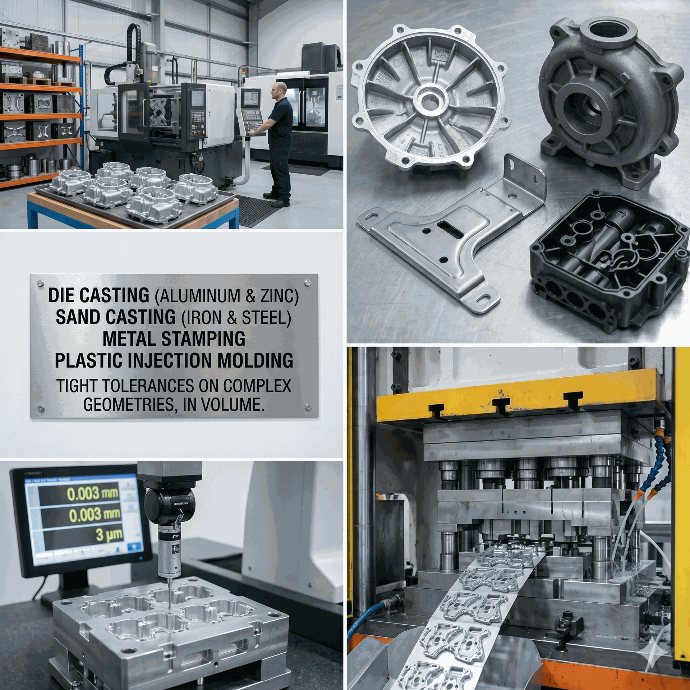

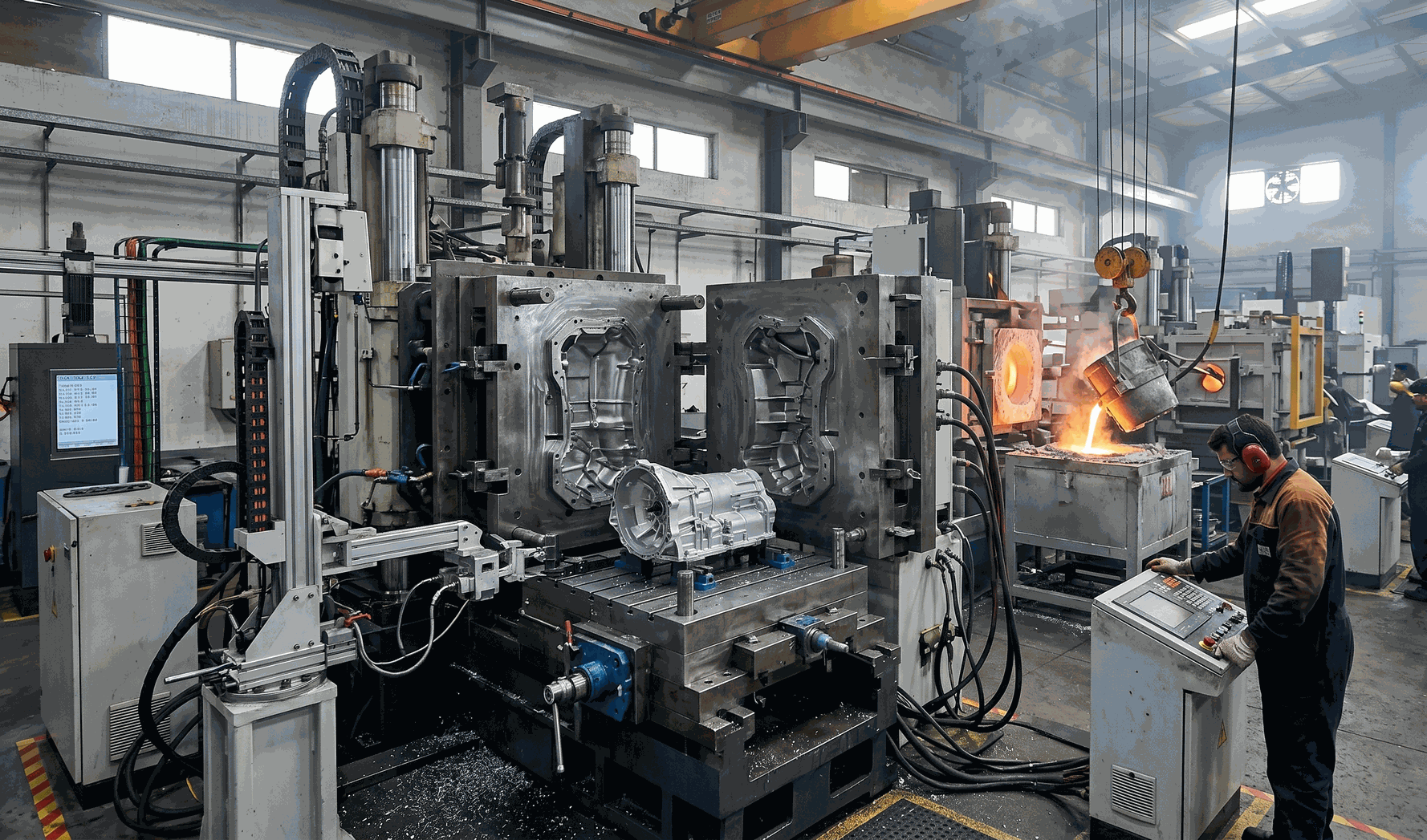

Casting and Forming
Die casting in aluminum and zinc, sand casting in iron and steel, metal stamping and plastic injection molding. Tight tolerances on complex geometries, in volume.

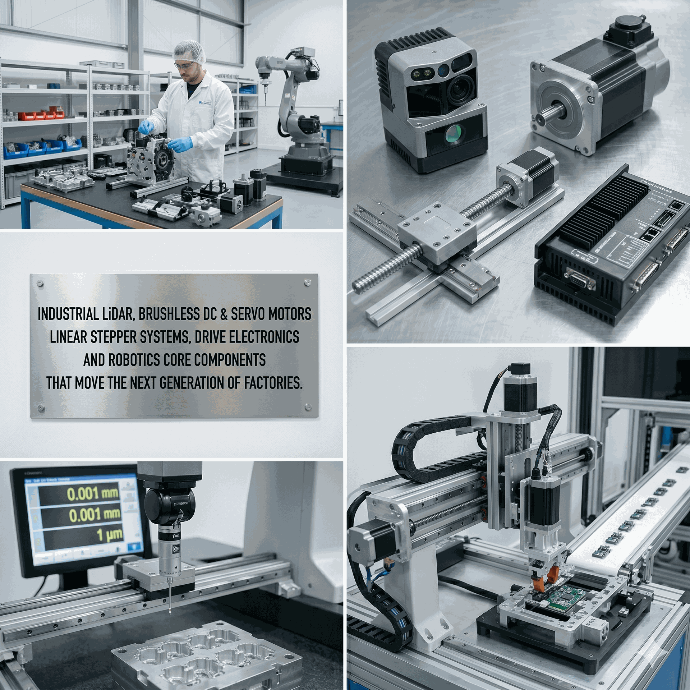

Electric Automation
Industrial LiDAR, brushless DC and servo motors, linear stepper systems, drive electronics and the robotics core components that move the next generation of factories.
Diversify your supply chain risk.
OEL has been an overseas manufacturing partner since 2011. We run a four-hub footprint - Vietnam as our Southeast Asia hub, with operations in Malaysia and China and a finished-goods warehouse in Bridgeton, Missouri for just-in-time US delivery. One contract, one quality system, multiple country-of-origin options for tariff and resilience planning.
Our core capabilities include:
- Precision CNC machining: high-tolerance milling and turning across 3-, 4- and 5-axis platforms.
- Casting and forming: die casting, sand casting, metal stamping and plastic injection molding.
- Hydraulic solutions: telescopic, welded, tie-rod and fully custom cylinders for OEM and aftermarket.
- Electric automation: industrial LiDAR (TUV-certified safety options), brushless DC, servo and stepper motors, drives.
- Assembly and fabrication: end-to-end assembly, post-processing and packaging to your spec.
- Logistics: Ex Works, FCA, FOB, CIF, DDP, DDU. Air and sea freight via FedEx, DHL, UPS, TNT and EMS.
Hydraulic Cylinders
Telescopic, welded, tie-rod and custom cylinders engineered for high-cycle service in dump trucks, mobile equipment, agricultural machinery and industrial presses. Bores from 1.5" to 12", strokes from 6" to 240", working pressures to 5,000 psi.

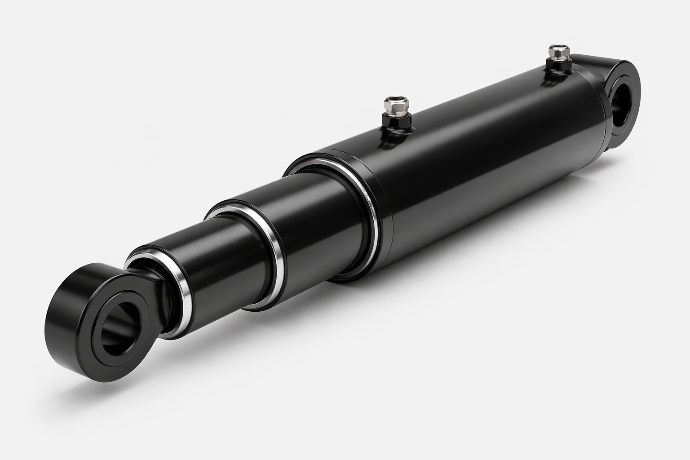

Telescopic Cylinders
- Up to 5 stages, single or double acting
- Strokes to 240"
- Hard chrome-plated stages
- Designed for dump trucks, trailers, refuse vehicles

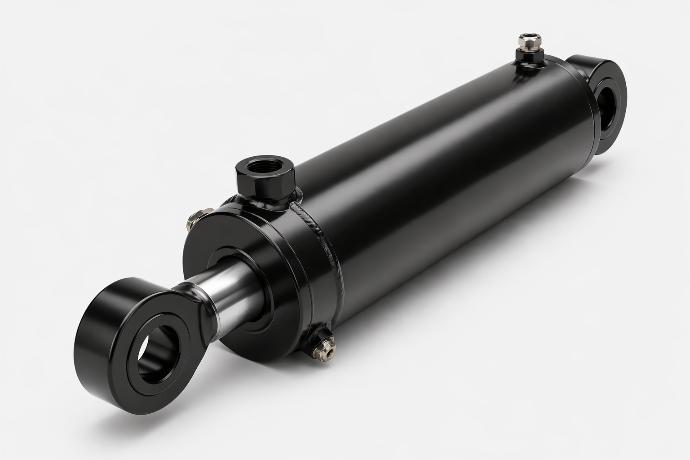

Welded Cylinders
- Bores 2" to 8", working pressure to 3,500 psi
- Welded end-cap construction for compact OEM fits
- Cushioning options on both ends
- Standard NFPA / metric mounting variants

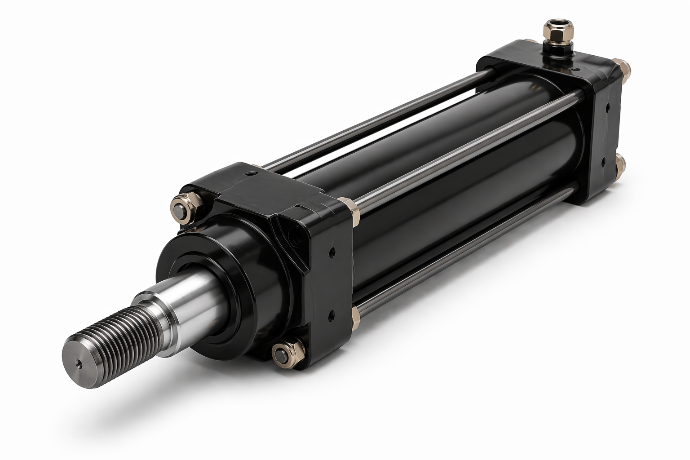

Tie-Rod Cylinders
- Bores 1.5" to 12", working pressure to 5,000 psi
- Field-rebuildable for long service life
- NFPA, ISO 6020/2 and ISO 6022 mounting standards
- Industrial press, machine tool and stationary equipment
Also in the catalog: custom cylinder designs, seal kits, manifolds, position sensors, swivel ball mounts and full OEM replacement parts. Submit your spec or a sample for a drop-in equivalent quote.
Machining and Casting
Tight-tolerance CNC machining, die casting, metal stamping and plastic injection molding under one roof - the same operations that have served global OEMs through OELCNC.com since 2011.
Capabilities

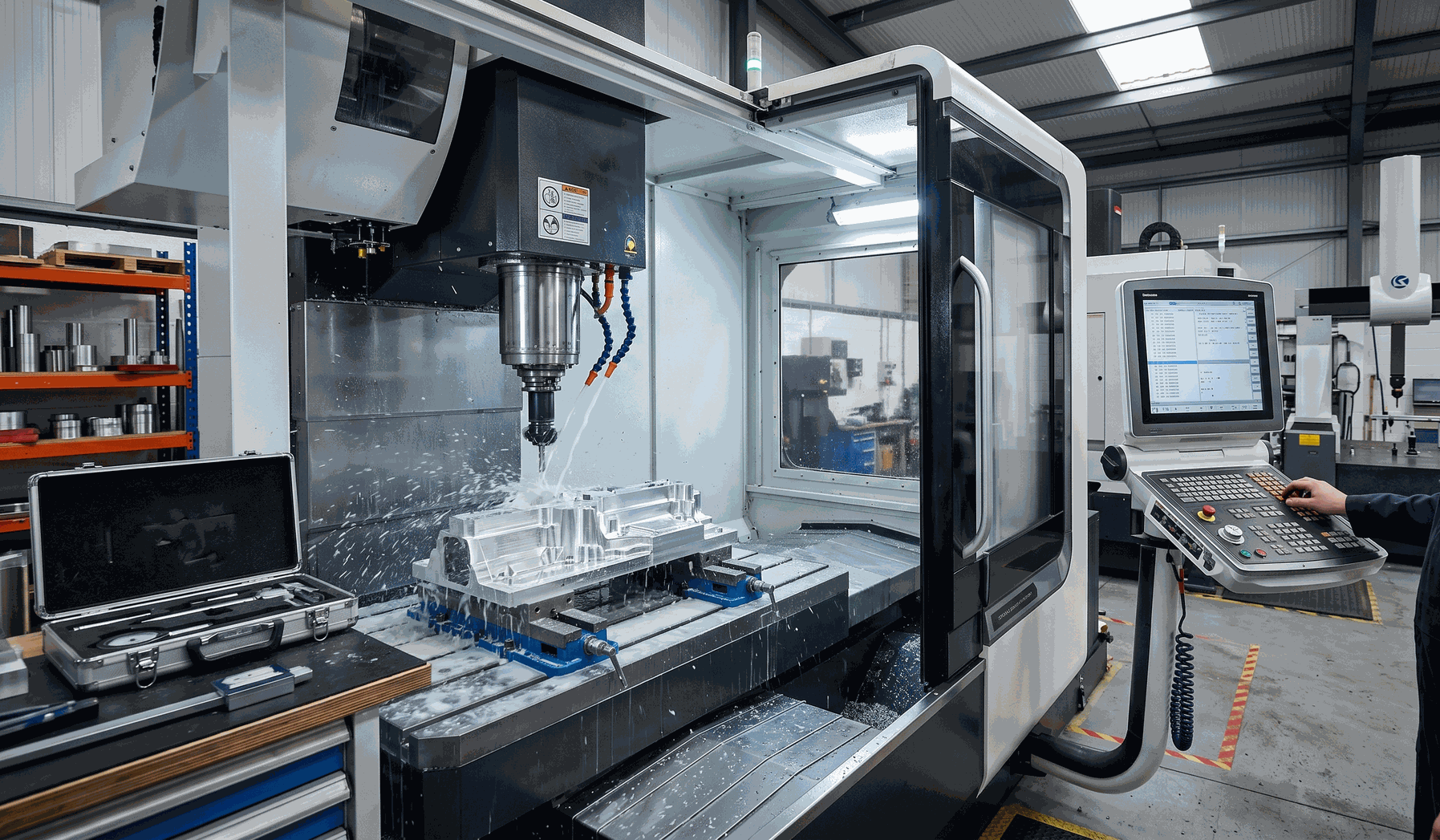

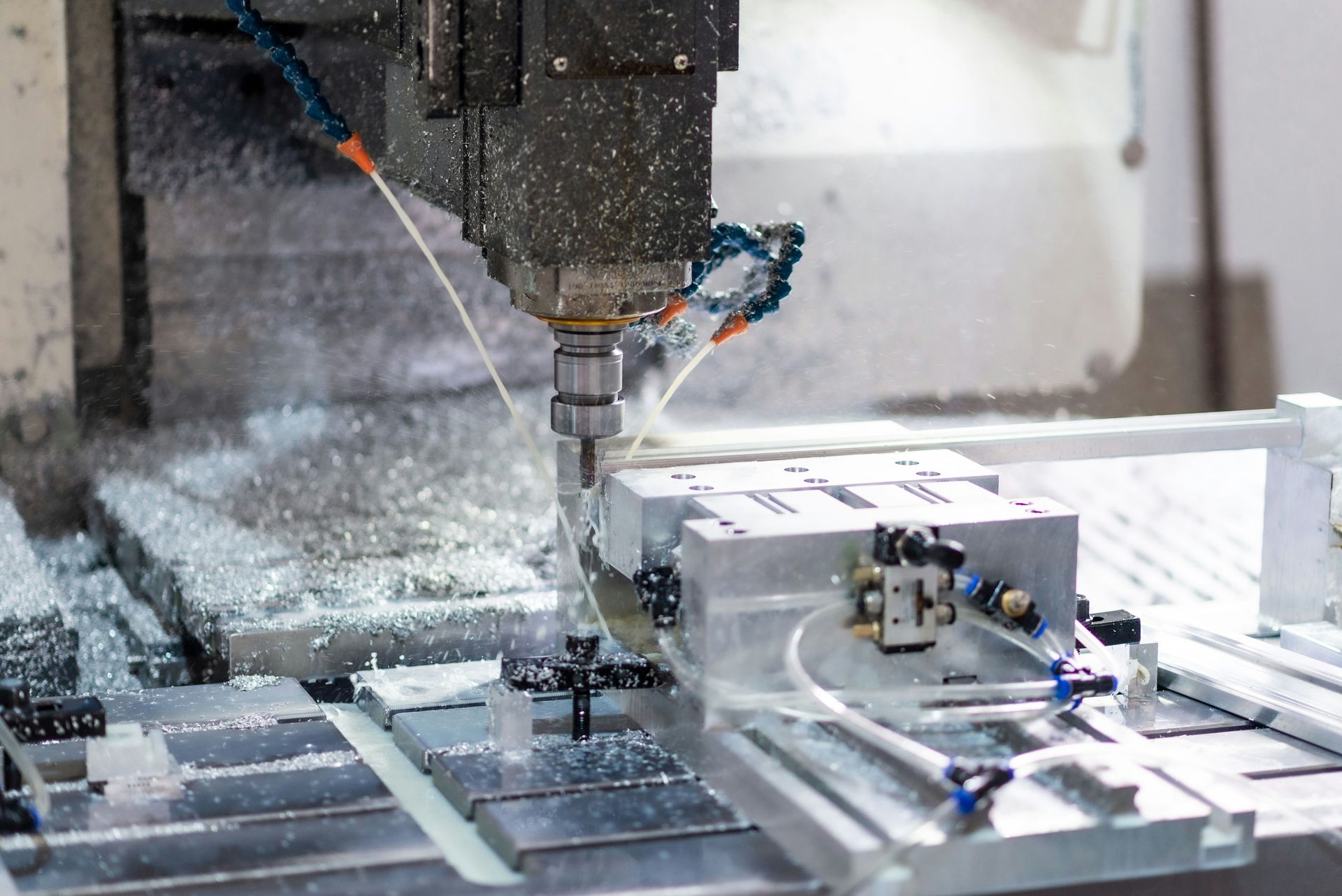

- CNC milling: 3-, 4- and 5-axis machining centers, parts to 1,500 mm long.

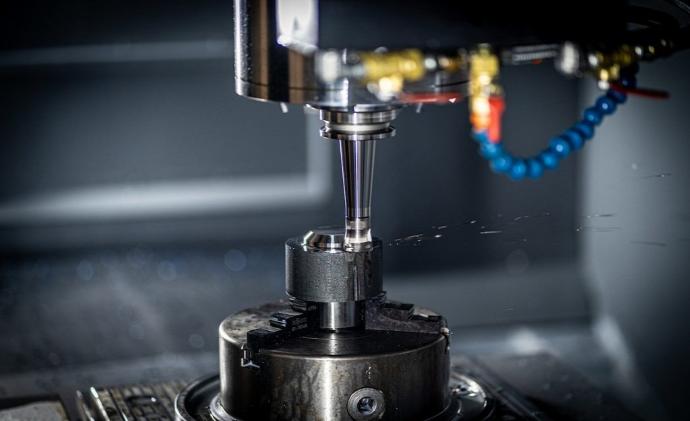

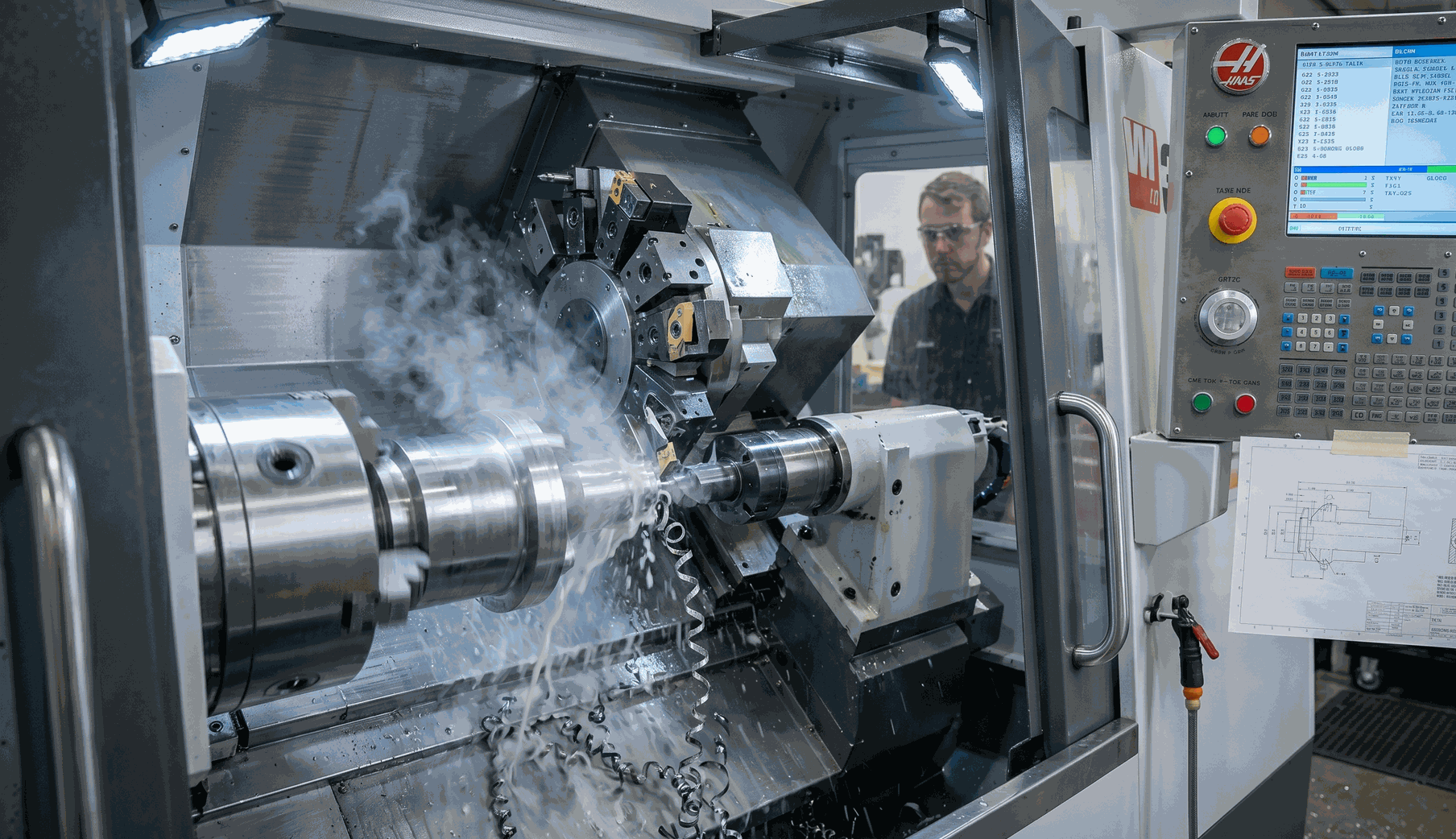

- CNC turning: swiss-style and live-tool turning, diameters up to 400 mm.

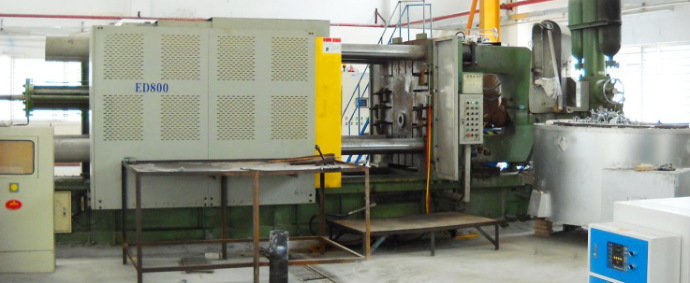

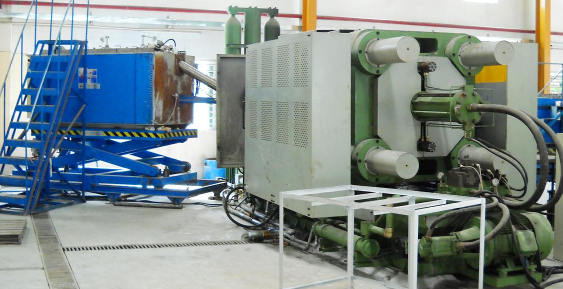

- Die casting: aluminum and zinc, single-cavity to multi-cavity tooling.
- Sand casting: iron and steel, complex geometries up to 50 kg.
- Metal stamping: progressive and transfer dies, sheet up to 6 mm.
- Plastic injection molding: ABS, PC, PA, POM and engineering grades.
- Post-processing: anodizing, plating, painting, heat treatment, polishing.
Tolerances and materials
- Standard tolerance: ISO 2768 medium for general features.
- Tight tolerance: down to plus or minus 0.005 mm on critical features.
- Surface finish: Ra 0.4 to 3.2 micrometer as specified.
- Materials: stainless 304/316/17-4PH, carbon steel, aluminum 6061/7075, zinc, copper, brass, titanium and engineering plastics.
How to engage
Send a CAD (2D or 3D), material, surface finish and quantity. You receive a proforma invoice with lead times. Production is scheduled, parts are inspected with documented QC reports, and shipped via your preferred Incoterm.
Electric Automation
The product line that powers the next generation of factories, warehouses and service robots. LiDAR sensing for navigation and safety, plus the electric motors and drives that move it all.

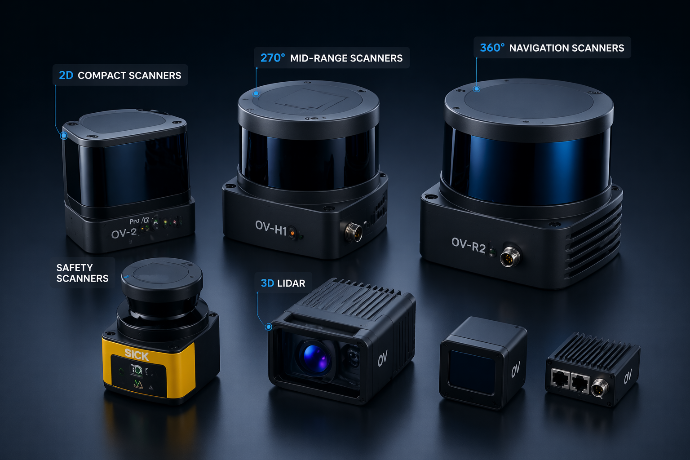

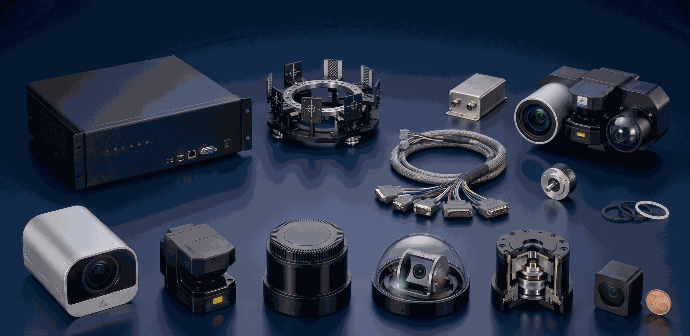

Industrial LiDAR
A complete 2D and 3D LiDAR family for AGVs, AMRs, automated forklifts, service robots and safety-rated area monitoring. Manufactured in our 12,000 m sq facility with a 3,000 m sq Class-100 clean room and an annual capacity of 500,000 units.
2D Compact Scanners (270 degree)
- Ov-C2 family: 50 x 50 x 77 mm, IP67, 25 m range, Ethernet / serial / I/O variants.
- Ov-C3: cost-performance single-line scanner, PNP/NPN selectable I/O, 100 klux ambient.
270 degree Mid-Range Scanners
- Ov-H1 30 / 40: 30 m or 40 m range, 0.05 degree angular resolution, 108 kHz emission, sub-7.5 mrad spot.
- Ov-H1 Pro I/O: 40 m navigation cloud + integrated PNP zone outputs.
360 degree Navigation Scanners
- Ov-R2: patented 360 degree optics, 45 m range (55 m custom), aluminum housing, 0.02 / 0.05 / 0.1 degree resolution.
Safety Scanners
- Ov-S1: TUV Rheinland-certified Type 3, Cat 3, PL d, SIL 2 (IEC 61508 / ISO 13849). 275 degree FOV, OSSD output, SICK Nanoscan3 footprint compatible.
3D LiDAR
- Ov-HemiScan: 360 x 63 degree FOV, up to 100 m range, dual-echo to 3.07 M points/sec.
- Ov-TitanScan 64: 64-line, 150 m range, 0.5 cm (1 sigma) precision.
- Ov-OmniScan: ultra-compact 45 x 35 x 45 mm 360 degree single-line.

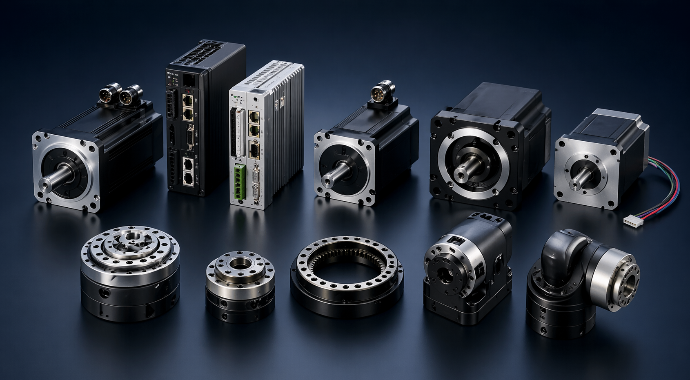

Motors and Drives
Powering the next generation of robotics, AGVs, semiconductor equipment and precision automation cells.
Brushless DC Motors
- Frame sizes 28 mm to 130 mm, power 10 W to 3 kW
- Hall-sensor or sensorless variants
- Standard 24 V / 48 V / 310 V DC bus options
Servo Systems
- AC servo motors with matched drives, 100 W to 7.5 kW
- 17-bit / 23-bit absolute encoders
- EtherCAT, CANopen and analog/pulse interfaces
Linear Stepper Motors
- Captive, non-captive and external linear actuators
- NEMA 8 to NEMA 34 frame sizes
- Repeatability to 25 micrometers
Robotics Core Components
- Harmonic and planetary gearheads
- Motor + drive + encoder + brake integrated joint modules
- Cable assemblies, EMC filters and braking resistors
Industries we serve
OEL parts and systems are in the field on six continents, in operations where downtime is not an option.

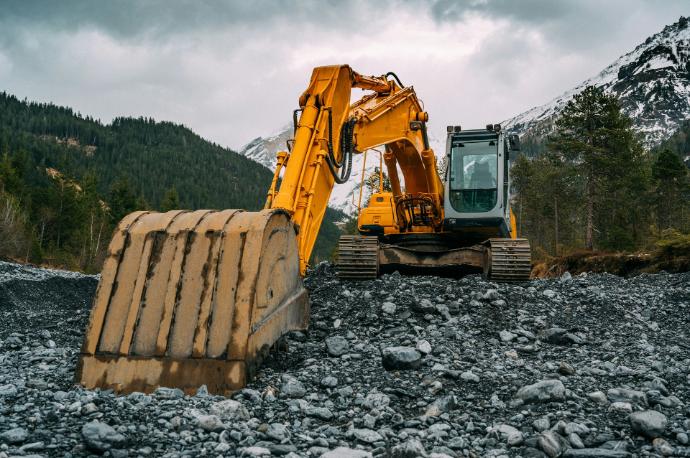

Construction and Mobile Equipment
Dump trucks, refuse vehicles, cranes, telehandlers, attachments. Telescopic and welded cylinders, OEM replacement parts.
Agriculture
Tractor implements, harvesting equipment, sprayers and balers. Custom cylinders and machined components for ag OEMs.

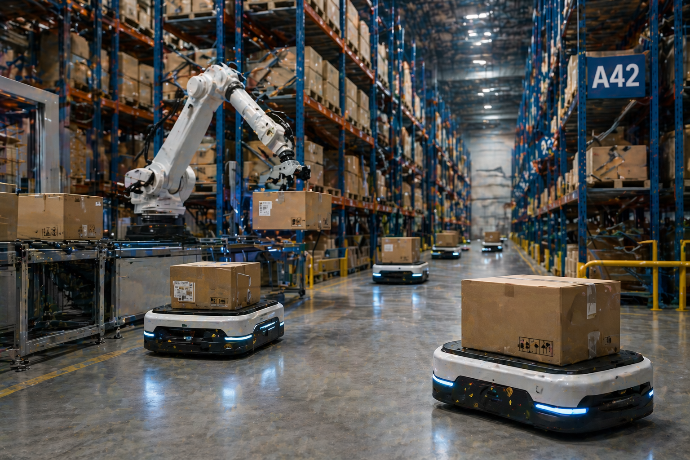

Warehouse Automation
AGVs, AMRs, automated forklifts and sortation. LiDAR navigation and safety, servo motors, drive electronics.

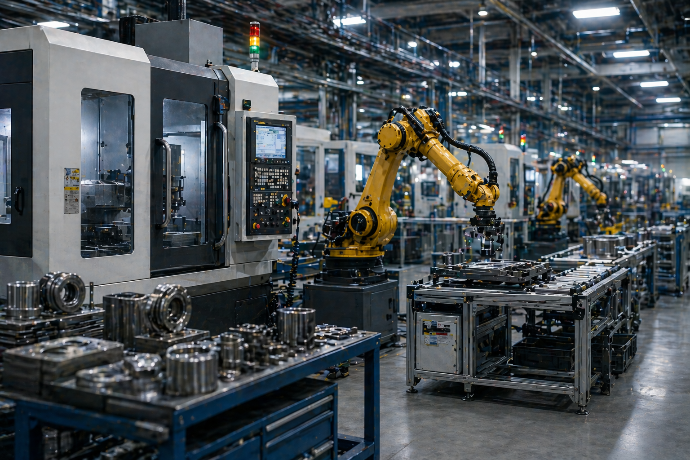

Industrial Machinery
Hydraulic presses, machine tools, packaging lines and material handling. Tie-rod cylinders, servo systems, machined parts.

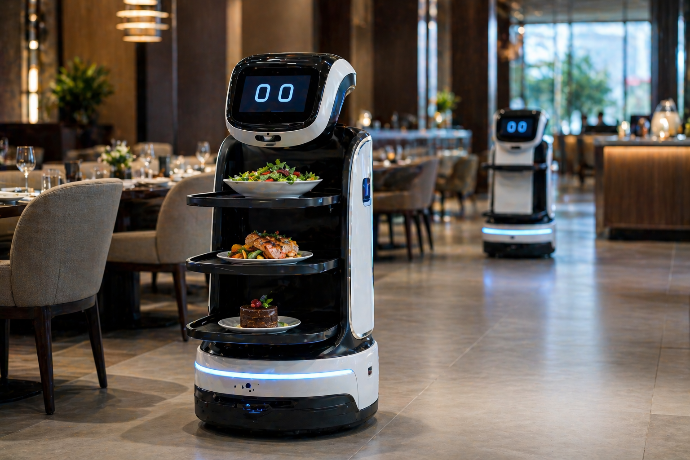

Robotics and Service Robots
Restaurant, hotel and hospital service robots. Compact LiDAR, joint modules, gearheads, motor-drive packages.
Energy and Infrastructure
Renewables, oil and gas, water and utilities. Cast housings, machined manifolds, motors and drives for inspection equipment.
Why OEL
Multi-country footprint
Vietnam, Malaysia, China and a US warehouse. Choose the country of origin that fits your tariff, lead-time and resilience strategy.
Vertically integrated
Casting, machining, hydraulic assembly, LiDAR optics, motor manufacturing - one supplier, one quality system, one PO.
JIT US stock
Bridgeton, Missouri warehouse holds finished goods for next-day pulls. Cuts your inventory and your stock-out risk.
Engineering-led
Submit a CAD, sample or sketch. Our engineering team replies with a manufacturable spec, not a polite "send drawings".
Audited, certified and ready to ship globally.
Incoterms supported: Ex Works, FCA, FOB, CIF, DDP, DDU. QC inspection reports available on request.
Featured Catalog
Frequently asked
Diversify your supply chain. Start with one part, one CAD, one PO.
Send us a CAD, a sample, or a tough requirement. Our engineering team replies with a quote, a lead time, and a manufacturing plan - usually within two business days.
US Office and Warehouse
4338 Bridgeton Industrial Drive
Bridgeton, MO 63044
United States
Manufacturing hubs
Vietnam (primary) - Malaysia - China
