Standard Hydraulic Cylinders
Standard Cylinders. Stocked.
Same-day. Shipped from Missouri.
A full line of standard hydraulic cylinders designed for immediate integration into skid steers, loaders, and mobile equipment. Telescopic, welded and tie-rod styles with customizable rod and mounting configurations. Orders placed before noon CST ship the same day from our Bridgeton, MO warehouse.
What we stock
The most common standard cylinder sizes held in US stock for same-day shipment. Need a size or configuration that's not on the shelf? We'll quote it as a short-run build out of our primary manufacturing hub.
In-stock standard cylinder ranges
| Type | Bore | Rod | Stroke | Max pressure | Typical mount |
|---|---|---|---|---|---|
| Welded - skid steer & loader | 2" – 4" | 1.25" – 2" | 6" – 48" | 3,000 psi | Cross-tube / pin eye |
| Welded - construction / trailer | 2.5" – 6" | 1.5" – 3" | 8" – 60" | 3,500 psi | Clevis / trunnion |
| Welded - cushioned | 2" – 8" | 1.25" – 4" | 6" – 60" | 3,500 psi | NFPA / metric |
| Tie-rod - industrial | 1.5" – 8" | 0.625" – 4" | 6" – 120" | 3,000 psi | NFPA JIC square head |
| Tie-rod - heavy duty | 2" – 12" | 1" – 5.5" | 6" – 120" | 5,000 psi | NFPA / ISO 6022 |
| Telescopic - dump / waste | 3.5" – 8" base | 2.5 – 5 stages | 48" – 240" | 3,000 psi | Top mount / cross-tube |
Ranges shown are what we stock. Bore, stroke and mounting variants outside these ranges are built to order - ask for a quote and lead time.
Three standard cylinder families

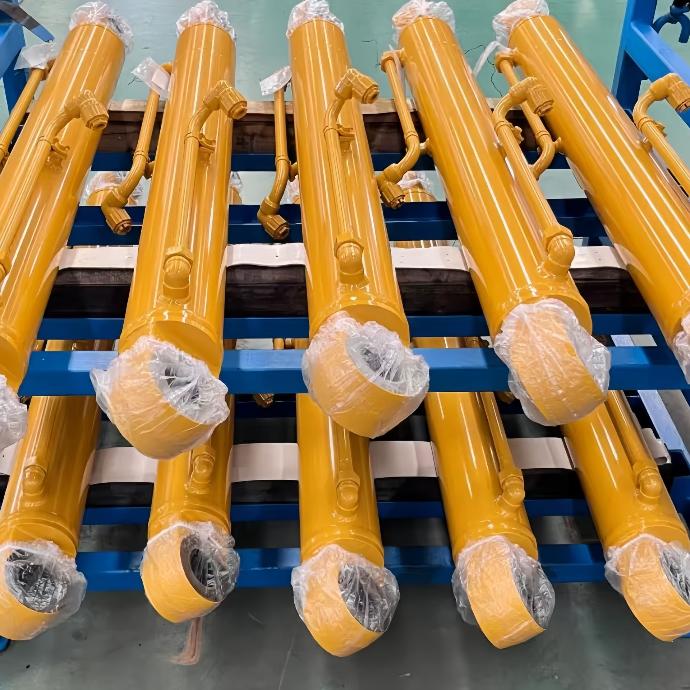

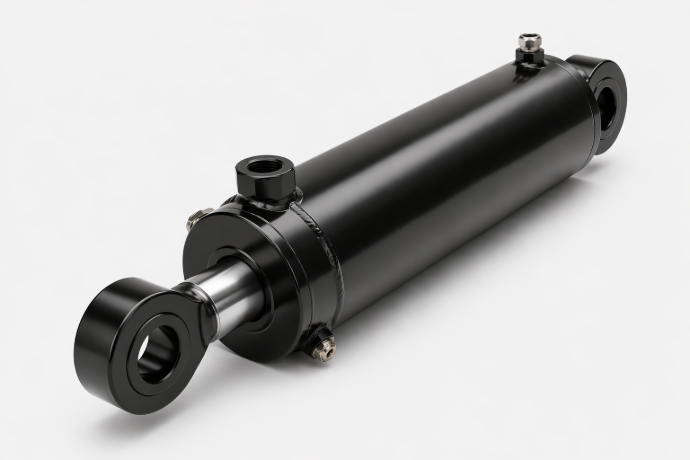

Welded Cylinders
- Bores 2" to 8", working pressure to 3,500 psi
- Welded end-cap construction - compact OEM fits
- Hard chrome-plated 45 HRC rod with polished finish
- Cushioning options on both ends
- Cross-tube, clevis, trunnion and custom mounts
Where they shine: skid steers, wheel loaders, refuse trucks, mobile equipment where package size matters more than field rebuildability.

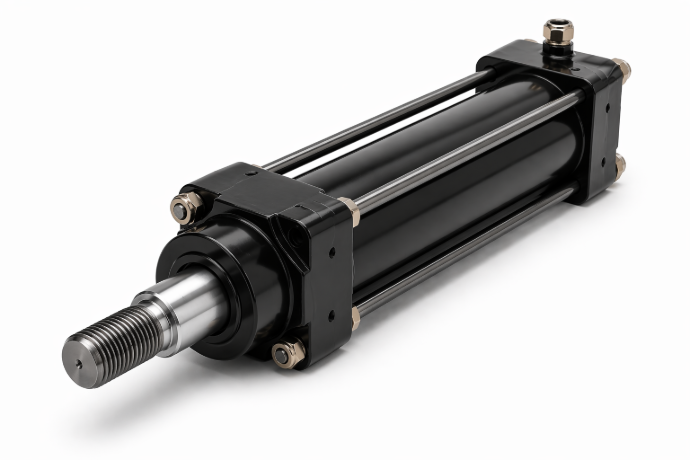

Tie-Rod Cylinders
- Bores 1.5" to 12", working pressure to 5,000 psi
- Field-rebuildable for long service life
- NFPA JIC, ISO 6020/2 and ISO 6022 mounting standards
- Standard and custom seal packages
- Variable port orientation (SAE-6, 8, 12, 16)
Where they shine: hydraulic presses, machine tools, stationary equipment, industrial automation cells - anywhere the cylinder will live long enough to be rebuilt.
Telescopic Cylinders
- Up to 5 stages, single or double acting
- Strokes to 240"
- Hard chrome, nitridation, thermal spray, or other wear‑resistant surface treatments.
- Top-mount, cross-tube and custom trunnion mounts
- Available with or without air-bleed kit
Where they shine: dump trucks, refuse vehicles, tippers, dump trailers - applications where you need a long stroke in a compact retracted length.
The Overland difference
What fleet managers and equipment dealers keep telling us they care about - and what we've built the standard cylinder program around.
Same-day shipping
Orders placed before 12:00 noon CST ship the same business day from our Bridgeton, MO warehouse. Keeps your machine earning rather than sitting.
Organized part numbering
A logical, mnemonic part number encodes type, bore, rod, stroke and mounting. Quote accurately the first time. Catalogs and worksheets available on request.
Over-engineered for durability
Thicker wall barrels, hardened chrome rods, premium seals and bronze-lined rod glands. Built to outlast the equipment it goes on.
Vertical supply chain
In-house CNC machining, welding, assembly and QC. No hand-off to an external shop means fewer delays and a tighter quality loop when you need a custom run.

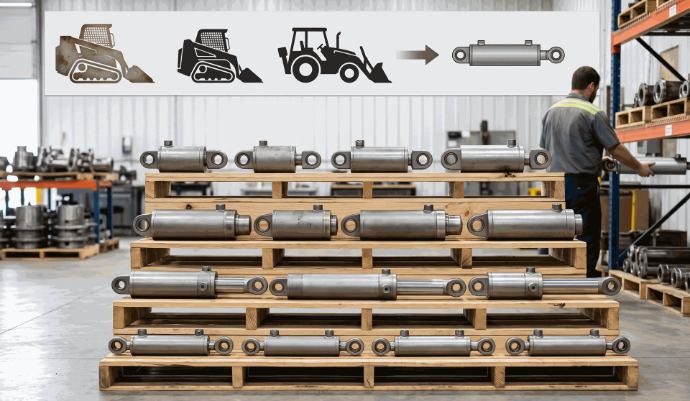

Drop-in replacements across major OEM brands
OEL standard cylinders are built as direct-fit replacements for the major skid-steer, compact-loader and mobile- equipment OEMs. Same mounting pin diameter, same retracted and extended lengths, same port size and orientation as the OEM part - so they bolt on without re-fabrication.
Brands we replace
- Bobcat (skid steers, track loaders, compact excavators)
- Case & Case CE (skid steers, loaders, backhoes)
- Caterpillar (skid steer and track loaders, CTL / MTL)
- Kubota (skid steers, track loaders, backhoes)
- New Holland (compact loaders, skid steers)
- JCB (skid steers, telehandlers, backhoes)
- Takeuchi (track loaders, compact excavators)
- John Deere (compact loaders, backhoes)
- Gehl, ASV, Mustang and other legacy OEMs
Not sure which cylinder fits your machine? Send us the OEM part number, the equipment model and year, or a photo of the stamping plate. We'll ID the right cylinder from stock.

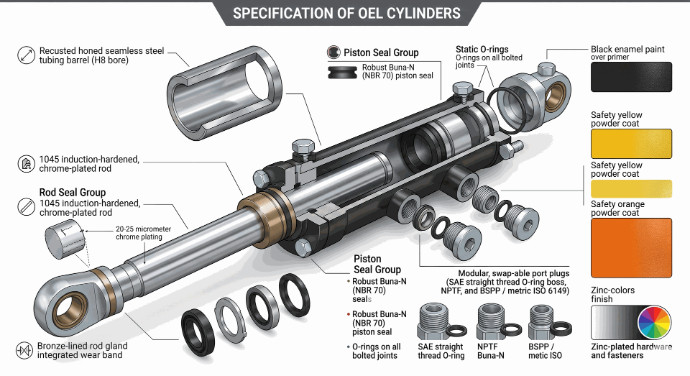

What's inside every OEL cylinder
The standard line isn't "commodity." Every cylinder is spec'd with the same materials and tolerances we use on our custom builds - it just comes in a smaller range of sizes.
Barrel and rod
- Honed seamless steel tubing, bore tolerance H8
- 1045 induction-hardened chrome-plated rod, 45 HRC surface
- Chrome plating thickness 20 - 25 micrometer typical
- Bronze-lined rod gland with wear band for side-load capacity
Seals and wipers
- Premium polyurethane rod seals, Buna-N piston seals (NBR 70)
- Viton and HNBR seal packages available for high-temp / biofuel service
- Metal scraper + polyurethane wiper on the rod
- Static O-rings on all bolted joints
Ports
- SAE straight thread (O-ring boss) - SAE-6 / 8 / 12 / 16
- NPTF ports available on request
- BSPP / metric ISO 6149 for international service
External finish
- Black enamel paint over corrosion primer (standard)
- Powder coat in safety yellow, safety orange or custom color on request
- Zinc-plated hardware and fasteners
Standard configuration options
Pick from the tables below or customize. Most combinations ship from stock; truly unusual builds quote as a short-run custom.
Rod end options
- Male thread: UNF or metric, full or partial thread length
- Female thread: tapped blind or through
- Rod eye: fixed or spherical (swivel ball for misalignment)
- Clevis: welded or cross-pin mounted, pin included
- Tang / knuckle: single- or double-tang configuration
- Cross-tube: welded tube for pin-mount applications

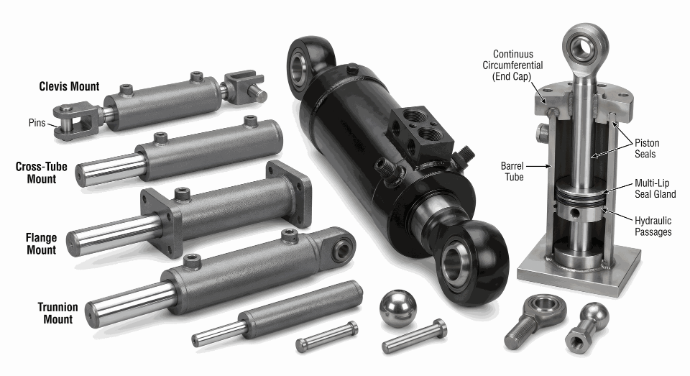

Cap-end mounting
- Cross-tube / pin eye - standard on skid-steer cylinders
- Clevis - welded clevis with bore-matched pin
- Trunnion - inline or offset, front / rear / center mount
- NFPA JIC square head - MS2, MS3, MS4 mounting styles
- ISO 6020/2 - European metric mounting standard
- ISO 6022 - heavy-duty industrial mount (to 5,000 psi)
Port orientation
- Port A and B on the same side (standard, 12 o'clock)
- Offset 90 degrees - left / right side porting
- Opposite sides (3 and 9 o'clock)
- Cap-end side or base-end face porting on tie-rod styles
- Port protector caps ship installed on stock inventory
Options and accessories
- Cushioning on cap end, rod end, or both
- Integral position sensors (magnetostrictive)
- Stainless steel rods for corrosive environments
- Heavy-duty nickel-plating on the rod for marine service
- High-temperature seal kit (Viton / HNBR)
- Counterbalance and pilot-operated check valves pre-plumbed
Beyond the catalog
Yes - we customize.
The standard line covers the cylinders people order every day. The custom line covers everything else. And "custom" here means real engineering collaboration, not just a bigger bore.
What we routinely customize
- Non-standard bore / rod / stroke combinations
- Unusual mounting configurations (trunnion offsets, compound angles)
- High-temperature, cryogenic or chemical service seal packages
- Integrated electronic position sensing
- Built-in counterbalance, check or relief valving
- Stainless steel or Nickel-plated construction for marine / offshore
- OEM-specific branding, part numbering and bar coding
How to engage
Send us a cylinder drawing, a hand sketch on a napkin, a cracked original sample - any of those work. Our in-house engineering team returns a manufacturable spec plus a proforma quote, typically within 2 business days.
Seal kits and spare parts
Every cylinder in the catalog has a matching seal kit held in stock, plus the common wear parts - wear bands, rod wipers, glands, pistons and tie rods.
Standard seal kits
- Buna-N / NBR 70 - general service, oil temp to 80 °C
- Polyurethane rod seals standard on all kits
- Bonded-washer static seals
- Metal scraper + polyurethane wiper
Specialty seal kits
- Viton (FKM) - high-temperature and synthetic-oil service
- HNBR - biofuel, ester-based hydraulic fluid
- EPDM - phosphate-ester fire-resistant fluid
- Low-friction PTFE glide rings on high-cycle service
Wear parts
- Bronze-lined rod glands (field-replaceable)
- Wear bands / bearing strips
- Piston nuts and piston assemblies
- Tie rods with calibrated preload nuts
- Cross-tube bushings and mounting pins
Pro tip: order the seal kit with the cylinder and keep it on the shelf next to the machine - most hydraulic repairs fail from a missing seal, not a cracked barrel.
JIT stock from Missouri
Same-day ship on orders before noon CST.
Our Bridgeton, Missouri warehouse holds the standard cylinder line and matching seal kits in finished-goods stock. Orders placed before 12:00 noon Central on a business day pull, pack and ship the same day via your preferred carrier.
Shipping partners
- FedEx, UPS and DHL ground and express
- LTL freight for heavy / long telescopic cylinders
- International air via DHL, UPS, TNT, EMS
- Container sea freight for quantity programs
Supported Incoterms
- Ex Works (EXW) Bridgeton, MO
- FCA Bridgeton
- FOB / CIF on international sea freight
- DDP / DDU on door-to-door programs
Mounting and quality standards
Built to the standards your equipment already runs.
NFPA JIC
T3.6.7 square-head mounting (MS2 / MS3 / MS4)
ISO 6020/2
Metric mounting standard up to 16 MPa
ISO 6022
Heavy-duty mounting standard up to 25 MPa (3,600 psi)
ISO 9001
Quality management system
Industries we serve
Construction
Skid steers, track loaders, compact excavators, backhoes. Bucket, tilt, lift and boom cylinders.
Agriculture
Tractor implements, sprayers, balers, planters. Welded and tie-rod cylinders for harvesting and tillage.
Waste and Refuse
Packer blades, tipper beds, compactors, roll-off hoist cylinders. Telescopic cylinders for dump trucks.
Landscaping and Snow
Snowplow angle and lift cylinders, sand spreader, landscape attachments, stump grinders and mowers.
Material Handling
Forklifts, telehandlers, aerial work platforms, dock levelers, lift gates and tailgates.
Industrial Machinery
Hydraulic presses, machine tools, stationary equipment, injection molding machines. Tie-rod cylinders to 5,000 psi.
Frequently asked
Send us an OEM part number, a photo, or a CAD. Get a quote today.
For stocked replacements: send the OEM part number from the cylinder stamping plate - we'll confirm the OEL match and ship same-day. For custom cylinders: send a drawing, sketch or sample and our engineering team will reply with a proforma quote within 2 business days.
US Stock Warehouse
4338 Bridgeton Industrial Drive
Bridgeton, MO 63044
United States
Same-day ship
Before 12:00 noon CST, Mon - Fri
