Radar, LiDAR and Sensors

See it. Measure it.
Sense it on the machine.

2D and 3D LiDAR scanners for AGV navigation and safety, plus the full sensing stack for mobile machinery: rotary encoders, draw wire sensors, magnetostrictive position sensors, liquid-level and temperature sensors, and pressure transmitters rated up to 600 bar. IATF 16949, CE, UL, ATEX and IECEx certified.

Browse the Catalog Spec a Sensor
32-bit
Max Encoder Resolution
20 m
Magnetostrictive Stroke
600 bar
Pressure Range
IATF 16949
+ ATEX, IECEx, UL, CE

Sensor families

Eight sensor families covering everything from 2D LiDAR scanning on an AGV to a 600-bar pressure transmitter inside a tunnel-boring machine. Each family is purpose-built for the environment it works in.

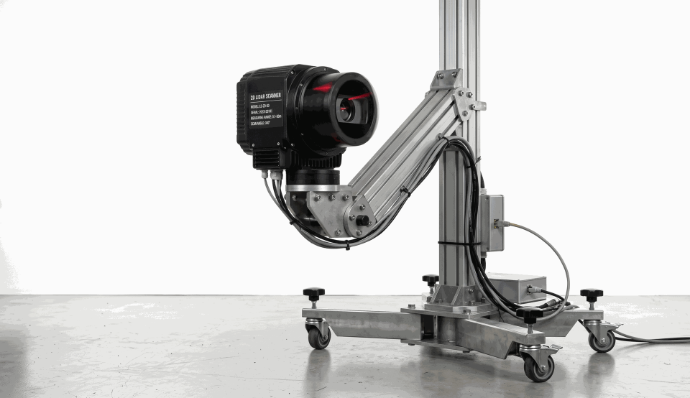

OEL 2D LiDAR scanner

OEL-C & OEL-H

2D LiDAR Scanners

Compact 270° scanners for AGV obstacle avoidance and navigation. 25 - 40 m range, Ethernet or serial, IP67.

View specs →

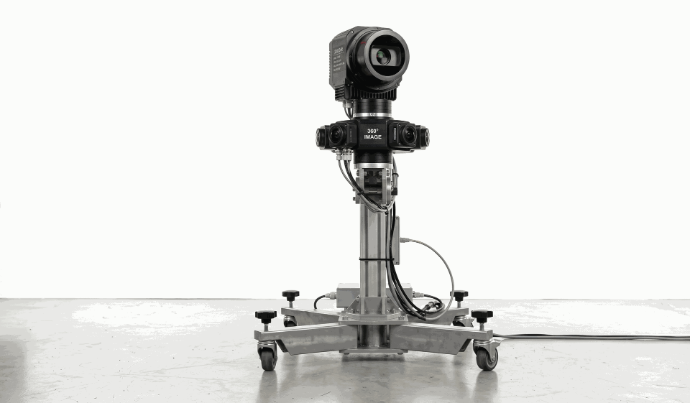

OEL 3D LiDAR scanner

OEL-R & OEL-3D

3D LiDAR and 360°

360° navigation scanners and 64-line 3D LiDAR up to 150 m. GNSS / PTP synchronization, IP67.

View specs →

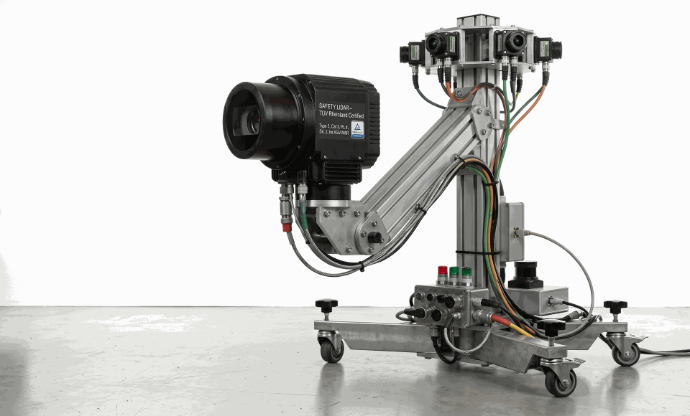

OEL safety LiDAR scanner

OEL-S1

Safety LiDAR

TÜV Rheinland-certified Type 3, Cat 3, PL d, SIL 2 safety scanner for AGV/AMR personnel protection.

View specs →

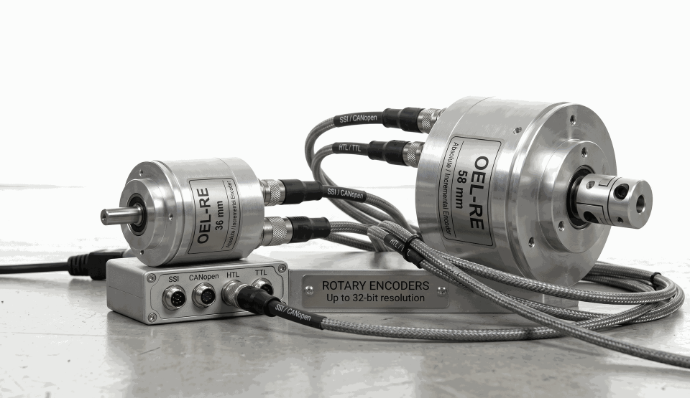

OEL rotary encoder

OEL-RE

Rotary Encoders

36 and 58 mm absolute encoders, up to 32-bit overall resolution, plus incremental options. SSI / CANopen / HTL / TTL.

View specs →

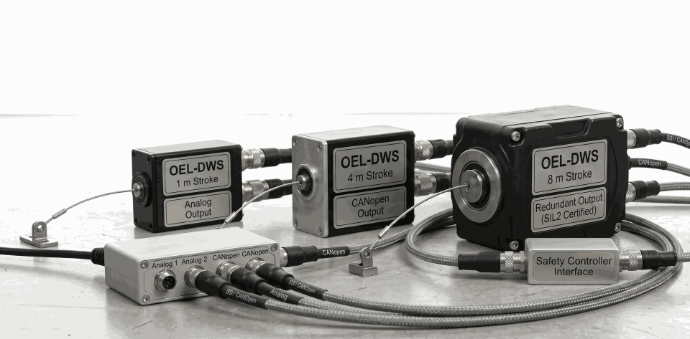

OEL draw wire sensor

OEL-DW

Draw Wire Sensors

1 m, 4 m and 8 m stroke ranges. Analog or CANopen output, redundant-output variants for safety-critical stroke measurement.

View specs →

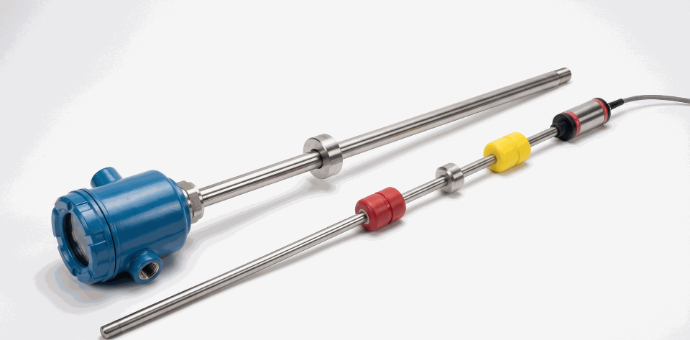

OEL magnetostrictive sensor

OEL-MS

Magnetostrictive Sensors

Non-contact absolute position sensors up to 20 m stroke. Analog, SSI, Start/Stop, IO-Link. ATEX / Ex variants available.

View specs →

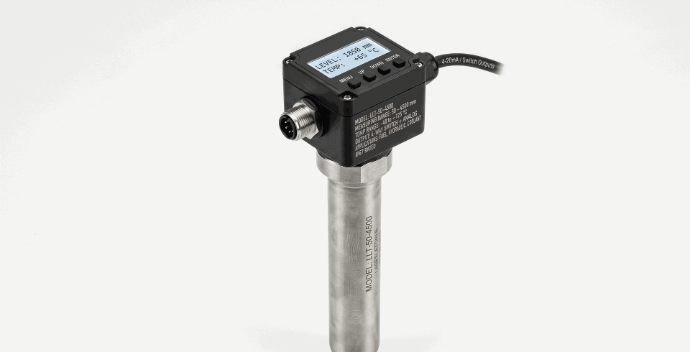

OEL liquid level and temperature sensor

OEL-LL

Liquid Level & Temp

Fuel, hydraulic oil and coolant level sensors. 50 - 4500 mm range. Temperature -40 to +125 °C. 4-way switch + analog outputs.

View specs →

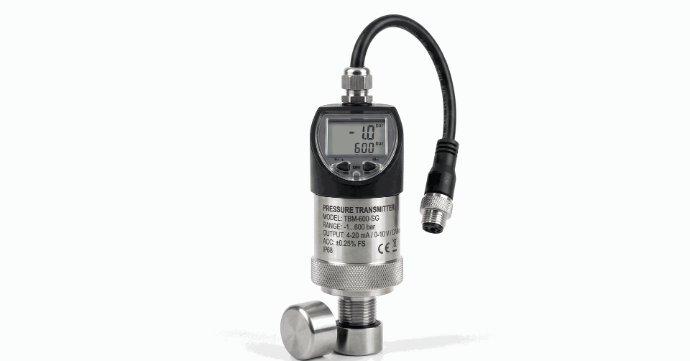

OEL pressure transmitter

OEL-PT

Pressure Transmitters

-1 to 600 bar with analog current / voltage / digital output. Specialty lines for soil, mud and grouting pressure on TBMs.

View specs →

LiDAR and radar scanners

2D compact scanners, 270° navigation-grade mid-range scanners, 360° full-circle scanners, TÜV-certified safety scanners, and 3D multi-line LiDAR - the full OEL scanning portfolio for AGV, AMR, automated forklift, service robot and area-security applications.

LiDAR catalog overview

Model FOV Range Resolution Frequency Interface IP
OEL-C2 Ethernet270°0.05 - 25 m1°15 / 25 HzEthernetIP67
OEL-C2 Serial270°0.03 - 8 m1°15 HzUARTIP67
OEL-C2 Pro I/O270°0.1 - 25 m0.05° / 0.1°15 / 30 HzEthernet + PNP I/OIP65
OEL-C3270°0.05 - 25 m0.167° - 1°10 / 15 / 25 HzEthernet + I/O + USBIP67
OEL-H1 30270°0.1 - 30 m0.05° / 0.1°15 / 30 HzEthernetIP65
OEL-H1 40270°0.1 - 40 m0.05° / 0.1°15 / 30 HzEthernetIP65
OEL-H1 Pro I/O270°0.1 - 40 m0.05° / 0.1°15 / 30 HzEthernet + I/OIP67
OEL-R2 360°360°0.1 - 45 m0.02° / 0.05°10 / 15 / 30 HzEthernetIP65
OEL-S1 Safety275°5 m PZ / 20 m WZ0.085°33.3 HzOSSD + Ethernet-
OEL-HemiScan 3D360° × 63°0.1 - 100 m0.15° H / 1° V10 / 30 HzUDP EthernetIP67
OEL-TitanScan 64360° × 32°0.1 - 150 m0.15° H / 0.5° V10 HzUDP EthernetIP67
OEL-OmniScan 360°360°0.025 - 25 m0.05° - 0.33°10 / 15 / 25 / 30 HzUDP EthernetIP67
2D Compact Scanners

OEL-C2 family. 50 × 50 × 77 mm housing, IP67, three variants: Ethernet, Serial (UART) and Pro with integrated PNP zone I/O for AGV obstacle protection.

Navigation-grade Mid-range

OEL-H1 family. 30 m or 40 m range, 0.05° resolution, 108 kHz emission, sub-7.5 mrad spot. SLAM and reflector triangulation ready.

360° and 3D

OEL-R2 full-circle 2D, OEL-HemiScan 3D (360° x 63°), OEL-TitanScan 64-line 3D with GNSS / PTP synchronization for multi-sensor fusion.

Rotary encoders – OEL-RE series

Absolute and incremental rotary encoders in 36 and 58 mm bodies. Shaft and hollow-shaft variants. Single-turn, multi-turn and combined resolutions up to 32 bits total. Protocols: SSI, CANopen, HTL, TTL.

Model Type Single-turn Multi-turn Overall Interface Body size
OEL-RE-36AAbsolute≤ 14-bit≤ 13-bit≤ 27-bitSSI, SSI + HTL / TTL36 mm
OEL-RE-58AAbsolute≤ 16-bit≤ 14-bit≤ 32-bitCANopen, SSI, SSI / CANopen + HTL / TTL58 mm
OEL-RE-58IIncremental1024 / 2048 PPR--HTL, TTL58 mm
Typical use cases
  • Steering-angle measurement on construction machinery
  • Mast rotation on concrete pumps and drilling rigs
  • Slew-angle feedback on cranes and excavators
  • Position feedback on indexing tables and rotary actuators
Build options
  • Shaft or hollow-shaft (through-hole) variants
  • Flange, servo, clamp or spring-loaded mounting
  • IP65 to IP69K for washdown and outdoor service
  • Operating temperature -40 to +85 °C standard

Draw wire sensors – OEL-DW series

String-potentiometer linear-position sensors for cylinder stroke measurement, outrigger deployment, boom extension and mast height. Three stroke ranges with analog or CANopen output and optional redundant output channel for safety-critical axes.

Model Stroke range Output Redundancy Typical use
OEL-DW-40D0 - 1 mAnalog (voltage / current)NoOutrigger deployment, short-stroke cylinders
OEL-DW-80D0 - 8 mAnalog or CANopenOptional dual-channel redundancyBoom extension, crane jib, telescopic forklift
OEL-DW-90S0 - 4 mAnalog (voltage / current)NoMast height, aerial work platform, supporting leg
Why draw wire
  • No cylinder-body modification - clamp to machine structure
  • Long stroke in a small package
  • Resilient to shock, vibration, dust
  • Redundant output variant for SIL 2 / PL d applications
Build options
  • Wire materials: stainless steel (standard), coated aircraft cable
  • Housing: aluminum, steel, polymer - IP65 / IP67
  • Operating temperature -30 to +80 °C standard
  • Mounting: through-hole, flange, custom brackets

Magnetostrictive position sensors – OEL-MS series

Non-contact absolute linear-position sensors for hydraulic cylinder stroke, process slides, TBM propulsion, and any application that demands no-wear, long-life measurement. Strokes from 25 mm to 20,000 mm across the family. ATEX / IECEx certified variants for hazardous environments.

T-series (third generation)

Model Stroke range Output Notes
OEL-MS-T3F100 - 20,000 mmAnalog, SSI, Start / StopFlexible-rod flagship; ultra-long stroke
OEL-MS-T3H25 - 7,650 mmAnalog, SSI, Start / StopHigh-precision mid-stroke
OEL-MS-T3D25 - 5,600 mmAnalog, SSI, Start / StopCompact form factor

Standard industrial series

Series Stroke range Output Typical use
OEL-MS-GB50 - 4,500 mmAnalog, SSI, Start / StopGeneral industrial hydraulic cylinder feedback
OEL-MS-CH250 - 4,500 mmAnalog, SSI, Start / StopCylinder-mount with chrome-plated rod
OEL-MS-DH25 - 4,500 mmAnalog, SSIHigh-density short-stroke
OEL-MS-GA50 - 4,500 mmAnalog, SSI, IO-LinkSmart variant with diagnostics
OEL-MS-K50 - 4,500 mmAnalogCost-optimized entry level
OEL-MS-GD25 - 4,500 mmAnalogATEX / IECEx hazardous environments
OEL-MS-MH50 - 4,500 mmAnalogHazardous environment variant
OEL-MS-ES50 - 2,500 mmAnalogExternal / profile-mounted
OEL-MS-MHT50 - 2,500 mmAnalogHeavy-duty, shock-rated
Why magnetostrictive
  • Absolute - no power-up re-homing required
  • Non-contact - no wear, no drift, long life
  • High resolution - typically 5 µm or better
  • Shock- and vibration-resistant by design
Typical applications
  • Hydraulic cylinder stroke feedback
  • TBM propulsion cylinders and shield positioning
  • Concrete-pump piston position
  • Injection-molding press plunger
  • Steel-mill roll gap and slab positioning

Liquid level and temperature sensors – OEL-LL series

Combined level and temperature measurement for diesel tanks, hydraulic oil reservoirs, coolant systems and process liquids. Three probe lengths and output configurations cover most mobile-machinery and industrial use cases.

Model Level range Temperature range Outputs Typical use
OEL-LL-YT50 - 2,000 mm-40 to +125 °C4-way switch + 2-way analogFuel, hydraulic oil, coolant on mobile equipment
OEL-LL-YW50 - 4,500 mm-40 to +125 °CAnalogLong-probe tanks, industrial reservoirs
OEL-LL-GWYS50 - 3,000 mm0 to +100 °CAnalogProcess water, coolant, chemical baths
What the 4-way switch gives you

Four independently programmable switch outputs for low-low, low, high and high-high alarms, plus two analog channels for continuous level and temperature readout. One sensor replaces four discrete float switches plus a level transmitter.

Build options
  • Probe material: stainless 304 / 316 / PTFE-coated
  • Flange or thread mounting
  • Hazardous-environment (Ex) variants on request
  • Custom probe lengths to 6 m

Pressure transmitters – OEL-PT series

General-purpose pressure transmitters from -1 to 600 bar, plus specialty lines for tunnel-boring machines (TBM) - soil pressure, mud pressure, grouting pressure and circulating-pipeline pressure. Analog current, analog voltage, and digital switch output variants.

General-purpose pressure transmitters

Model Range Output Typical use
OEL-PT-PC-1 to 600 barAnalog current + analog voltageStandard hydraulic pressure monitoring
OEL-PT-PE-1 to 400 barAnalog current + analog voltageMid-range hydraulic, pneumatic
OEL-PT-PC-J5 to 600 barAnalog current + analog voltageHigh-pressure monitoring
OEL-PT-PC-T-1 to 600 barAnalog + PNP / NPN switchCombined analog and threshold switching

TBM (Tunnel Boring Machine) specialty series

Model Medium TBM type Notes
OEL-PT-PTSoil pressureSoil pressure shield (EPB)Direct-contact soil pressure transmitter
OEL-PT-PNJMud pressureMud shield machine (slurry)Abrasion-resistant diaphragm
OEL-PT-LPGrouting pressureDual-mode shieldMonitors concrete grouting line
OEL-PT-PSY01Pipeline pressureDual-mode shieldCeramic-membrane piezometer, high-chemical-resistance
OEL-PT-PF-HCirculating pipelineTBM universalCirculating pipeline pressure transmitter
Output options
  • Analog current: 4-20 mA, 0-20 mA
  • Analog voltage: 0-5 V, 0-10 V, 1-5 V
  • Digital switch: PNP or NPN normally-open / normally-closed
  • CANopen and HART on request
Process connections
  • G1/4, G1/2, NPT 1/4, NPT 1/2 standard thread
  • Flush-diaphragm on TBM specialty lines
  • Ceramic-membrane for aggressive chemical media
  • Welded / flange connections for fixed installations

Where OEL sensors earn their keep

High precision, high reliability, fast response - across the machinery where sensor failure means downtime and safety risk. Accurate monitoring of position, attitude and pressure directly improves construction efficiency, operator safety and equipment service life.

Construction machinery
  • Steering-angle encoders (front and rear)
  • Magnetostrictive sensors on baffle cylinders
  • Magnetostrictive on front / rear wheel lifting
  • Draw wire on supporting legs
  • Encoders on mast rotation
Tunnel boring machines (TBM)
  • Magnetostrictive on propulsion cylinders
  • PT / PNJ soil and mud pressure transmitters
  • LP grouting pressure transmitter
  • PSY01 ceramic-membrane piezometer
  • PF-H circulating pipeline pressure
  • Main drive seal-area pressure
Concrete pumps and cranes
  • Rotary encoders on boom / arm joints (arm 1-7)
  • Magnetostrictive on pumping cylinders
  • Hydraulic pressure transmitters
  • Draw wire on telescopic boom extension
  • Encoders on slew bearing
AGVs and AMRs
  • LiDAR for navigation and obstacle avoidance
  • S1 safety LiDAR for personnel protection
  • Rotary encoders on drive motors
  • Pressure transmitters on hydraulic lift
Mobile hydraulics
  • Liquid level + temperature on hydraulic tanks
  • Magnetostrictive on cylinder stroke feedback
  • Pressure transmitters on pump outlets
  • Draw wire for shorter-stroke cylinders
Industrial process
  • Tank level + temperature monitoring
  • Pipeline pressure transmitters
  • Press slide position (magnetostrictive)
  • Rotary indexing encoders

Standards and certifications

Audited to the standards your industry expects.

Sensor production runs under IATF 16949 automotive quality and ISO 9001. Product lines carry UL and CE marking; ATEX and IECEx variants available for hazardous-environment service; CCC (3C) for the China market; NQA registered management systems. TÜV Rheinland certifies the safety-rated LiDAR line to IEC 61508 / ISO 13849 Type 3, Cat 3, PL d, SIL 2.

UL listed CE marked ATEX certified IECEx certified CCC 3C mark IATF 16949 certified

Frequently asked

Three options depending on your priorities. Magnetostrictive (OEL-MS) is the premium answer - absolute, non-contact, long life, 5 µm resolution, installed inside the cylinder bore. Draw wire (OEL-DW) clamps to the outside of the machine without touching the cylinder - cheaper, still reliable, but subject to wire wear on very high-cycle applications. Rotary encoder (OEL-RE) attached to the piston rod via a rack / pinion is a third path for short-stroke applications.

Yes - we have ATEX and IECEx certified variants in both the magnetostrictive line (OEL-MS-GD, OEL-MS-MH) and the pressure transmitter line. Zone 1 and Zone 2 rated. Specify the hazardous-area classification of your application (gas, dust, equipment category) in the RFQ and we will quote the matching SKU.

Absolute encoders report a unique position code at every angle - they know where they are the moment they power up, no homing required. Ideal for axes that can move during power-down (hoists, cranes, slew rings). Incremental encoders only report changes from a reference zero; you have to re-home the axis after every power cycle. Ideal for continuous rotation axes (drive shafts, spindles, conveyor belts) where absolute position is not needed.

Yes - one of our most common programs. A typical AGV bundle pairs two OEL-C2 compact LiDAR (front and rear bumpers) plus one OEL-S1 safety scanner for certified personnel protection, two rotary encoders on the drive motors, one draw wire on the lift, plus hydraulic pressure transmitters where applicable. Spec once, quote as a package, ship matched.

Yes. Non-standard stroke lengths on magnetostrictive and draw wire sensors, non-standard pressure ranges on transmitters, and custom connector and cable options are routine. Typical custom lead time 4 - 6 weeks. Volume programs are quoted on their own schedule.

Yes, for serious TBM work. Generic hydraulic pressure transmitters fail in months under the abrasion, chemistry and shock of TBM service. OEL-PT-PNJ (mud), OEL-PT-PT (soil) and OEL-PT-PSY01 (ceramic membrane) are purpose-built for those media - longer life, more reliable, and cheaper in the long run than replacing generic transmitters every rebuild cycle.

Standard catalog LiDAR and sensor SKUs typically ship in 3 - 4 weeks. Custom stroke lengths on magnetostrictive / draw wire sensors and custom pressure ranges run 4 - 6 weeks. Large volume programs quoted on program schedule. Urgent small- quantity pulls from US stock (Bridgeton, MO) ship same day on available SKUs.
Ready to spec a sensor?

Send us the measurement, the environment and the output. We'll reply with a part number and a quote.

Whether you need a single draw wire for a boom retrofit, a full LiDAR stack for an AGV fleet, or a TBM sensor package for a tunnel project, the first message gets you into a thread with our sensor engineers. Response within one business day.
