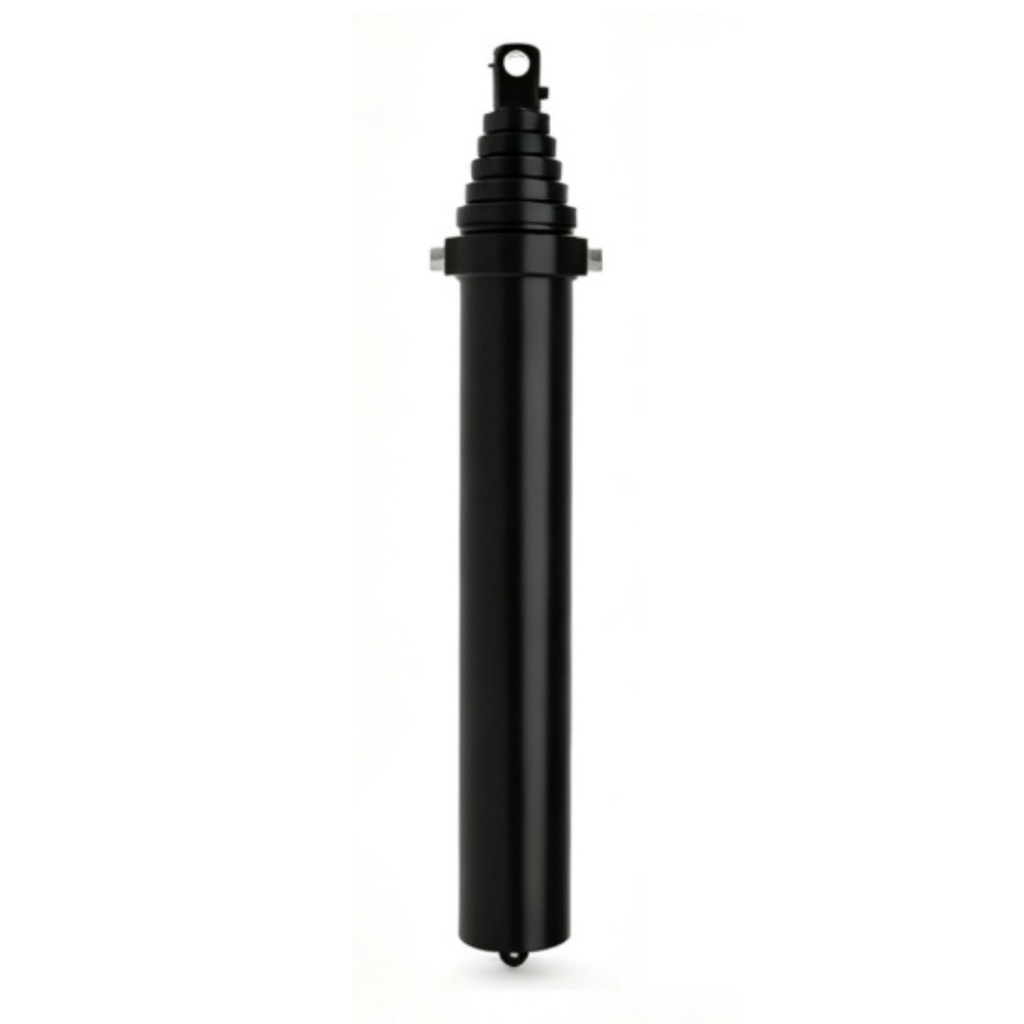

Commercial / Parker Replacement SD96MC-5-480 DAT Ejector/Push Out Hydraulic Cylinders
This product has no valid combination.
Technical Specifications
General
| Fits Manufacturer | Commercial/Parker | McClain | Steco |
|---|---|
| Weight | 1,710.00 lbs |
Dimensions
| Telescopic Stages | 6 |
|---|---|
| Closed Length | 110.88 in |
| Open Extended Length | 590.880 in |
| Telescopic Stroke | 480 in |
| Largest Stage OD | 9.000 in |
Mounting
| Base End Mount Type | Trunnion |
|---|
Ports
| Extend Port / Plunger | 1.25 NPT |
|---|
Trunnion
| Trunnion Closed | 46.250 in |
|---|---|
| Trunnion Pin Diameter | 3.000 in |
| Trunnion Pin Length | 2.000 in |
| Trunnion Width | 16.000 in |
