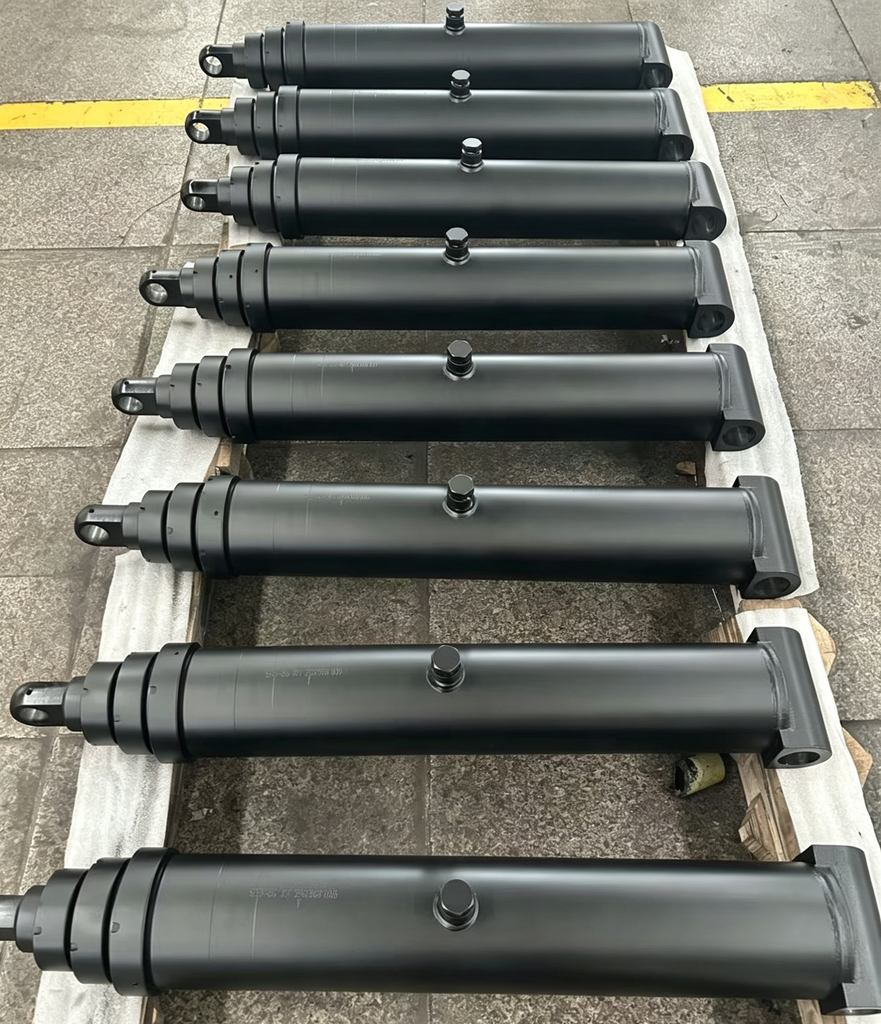

Commercial / Parker Replacement S83CC-18-78 SAT Truck Dumper Hydraulic Cylinders
This product has no valid combination.
Technical Specifications
General
| Fits Manufacturer | Commercial/Parker | Screw Conveyor Corp / Kewanee® |
|---|---|
| Weight | 593.00 lbs |
Dimensions
| Telescopic Stages | 3 |
|---|---|
| Closed Length | 45.88 in |
| Open Extended Length | 123.880 in |
| Telescopic Stroke | 78 in |
| Largest Stage OD | 8.000 in |
Mounting
| Base End Mount Type | Drilled Thru Lug |
|---|---|
| Base Mount Width | 3.000 in |
| Base Pin Size | 2.500 in |
| Rod End Mount Type | Drilled Thru Lug |
| Rod Mount Width | 3.000 in |
| Rod Pin Size | 2.500 in |
