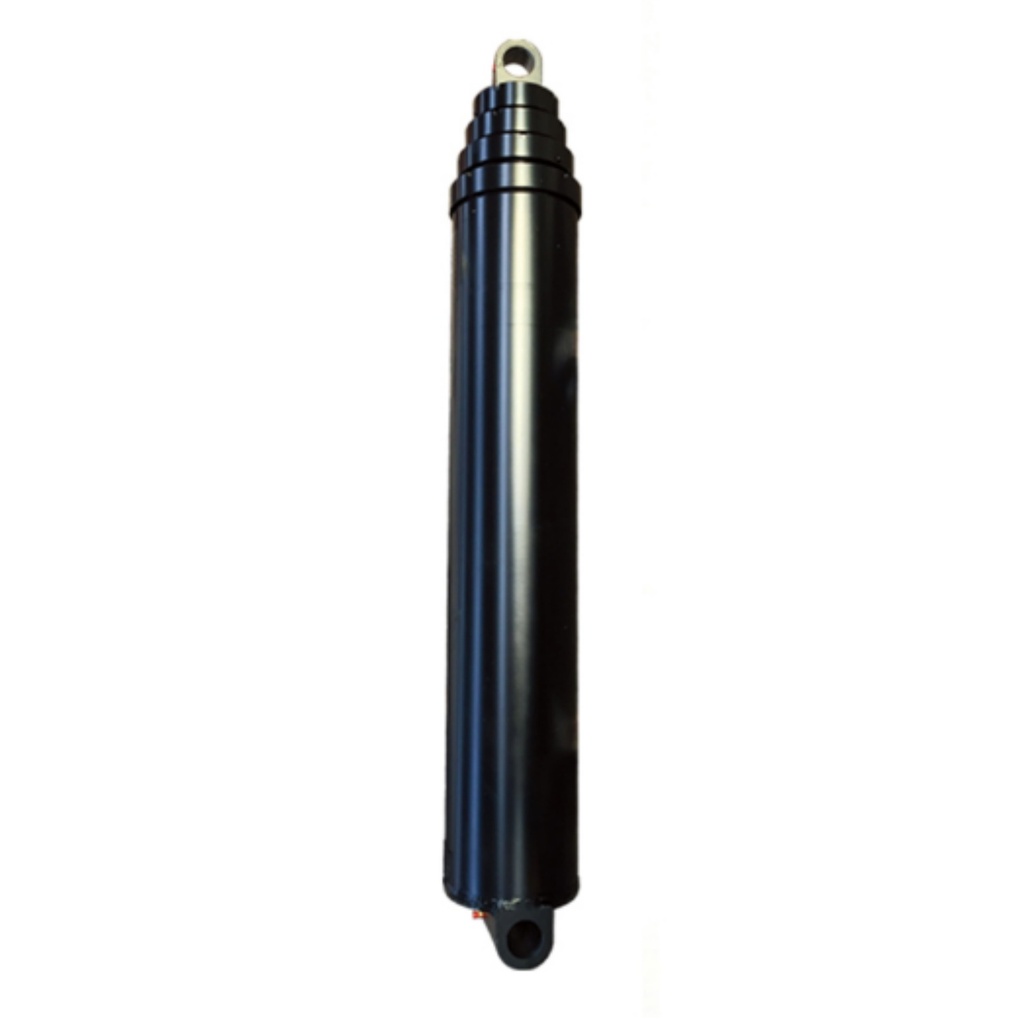

Commercial / Parker Replacement S74MB-5-167 SAT Cylinders Assembly Hydraulic Cylinders
This product has no valid combination.
Technical Specifications
General
| Fits Manufacturer | Commercial/Parker |
|---|---|
| Weight | 455.00 lbs |
Dimensions
| Telescopic Stages | 4 |
|---|---|
| Closed Length | 58.37 in |
| Open Extended Length | 225.370 in |
| Telescopic Stroke | 167 in |
| Largest Stage OD | 7.000 in |
Mounting
| Base End Mount Type | Trunnion |
|---|---|
| Rod End Mount Type | Drilled Thru Rod |
| Rod Mount Width | 3.620 in |
| Rod Pin Size | 2.000 in |
Ports
| Extend Port / Plunger | -16 SAE ORB |
|---|
Trunnion
| Trunnion Closed | 13.000 in |
|---|---|
| Trunnion Open | 180.000 in |
| Trunnion Pin Diameter | 1.750 in |
| Trunnion Pin Length | 1.630 in |
| Trunnion Width | 12.250 in |
