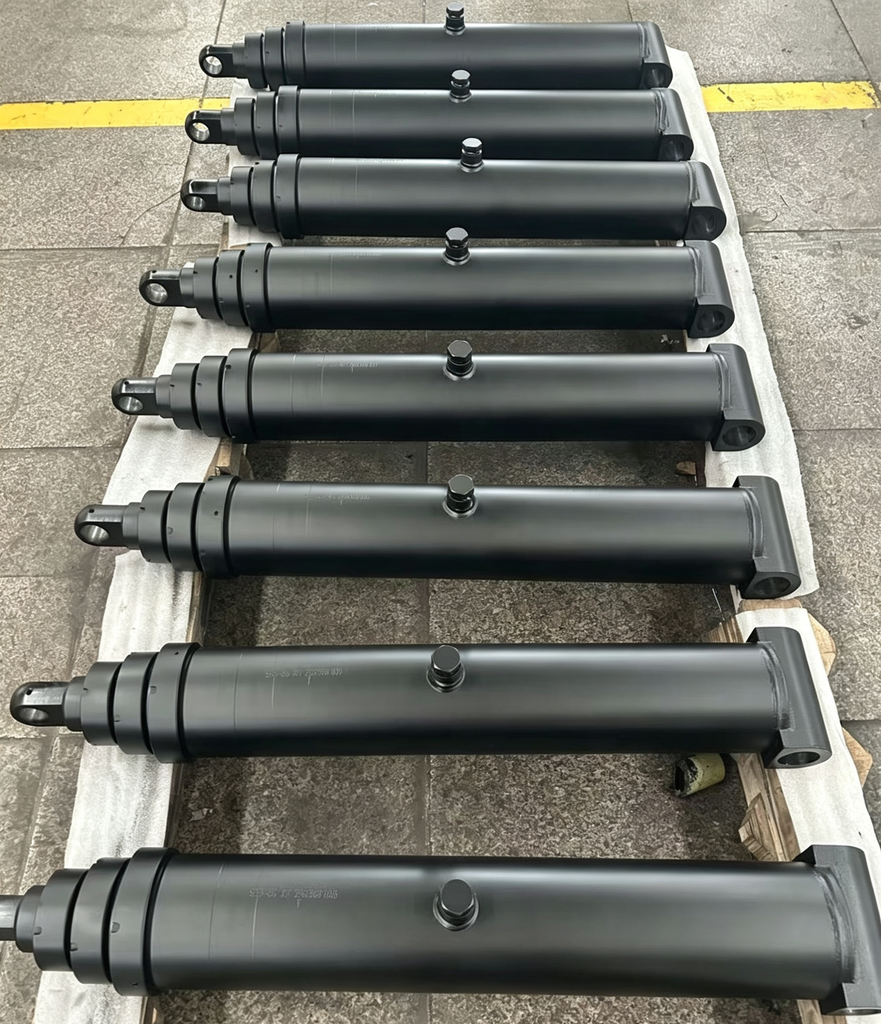

Commercial / Parker Replacement S73DC-60-142 SAT Dump Hoist Hydraulic Cylinders

https://oelus.com/web/image/product.template/987/image_1920?unique=f361a0e
Contact Us

This product has no valid combination.

Terms and Conditions

Technical Specifications

General
Fits ManufacturerCommercial/Parker
Weight425.00 lbs
Dimensions
Telescopic Stages3
Closed Length61 in
Open Extended Length203.130 in
Telescopic Stroke142 in
Largest Stage OD7.000 in
Mounting
Base End Mount TypeCross-Tube
Base Mount Width7.000 in
Base Pin Size2.000 in
Rod End Mount TypeDrilled Thru Lug
Rod Mount Width2.000 in
Rod Pin Size1.620 in
Ports
Extend Port / Plunger-16 SAE ORB
