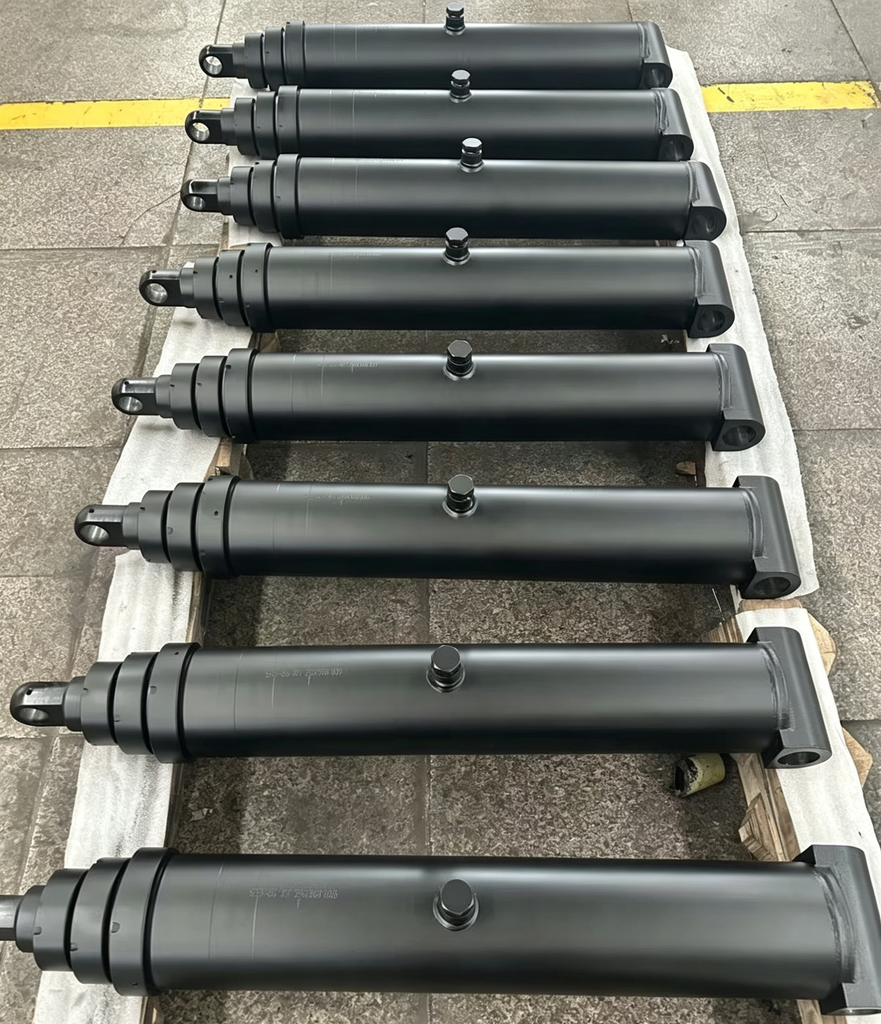

Commercial / Parker Replacement S53DC-66-84 SAT Dump Trailer Hydraulic Cylinders

https://oelus.com/web/image/product.template/1021/image_1920?unique=f361a0e
Contact Us

This product has no valid combination.

Terms and Conditions

Technical Specifications

General
Fits ManufacturerCommercial/Parker
Weight215.00 lbs
Dimensions
Telescopic Stages3
Closed Length41.18 in
Open Extended Length125.180 in
Telescopic Stroke84 in
Largest Stage OD5.000 in
Mounting
Base End Mount TypeCross-Tube
Base Mount Width7.000 in
Base Pin Size2.000 in
Rod End Mount TypeDrilled Thru Lug
Rod Mount Width1.500 in
Rod Pin Size1.620 in
Ports
Extend Port / Plunger.75" NPT
