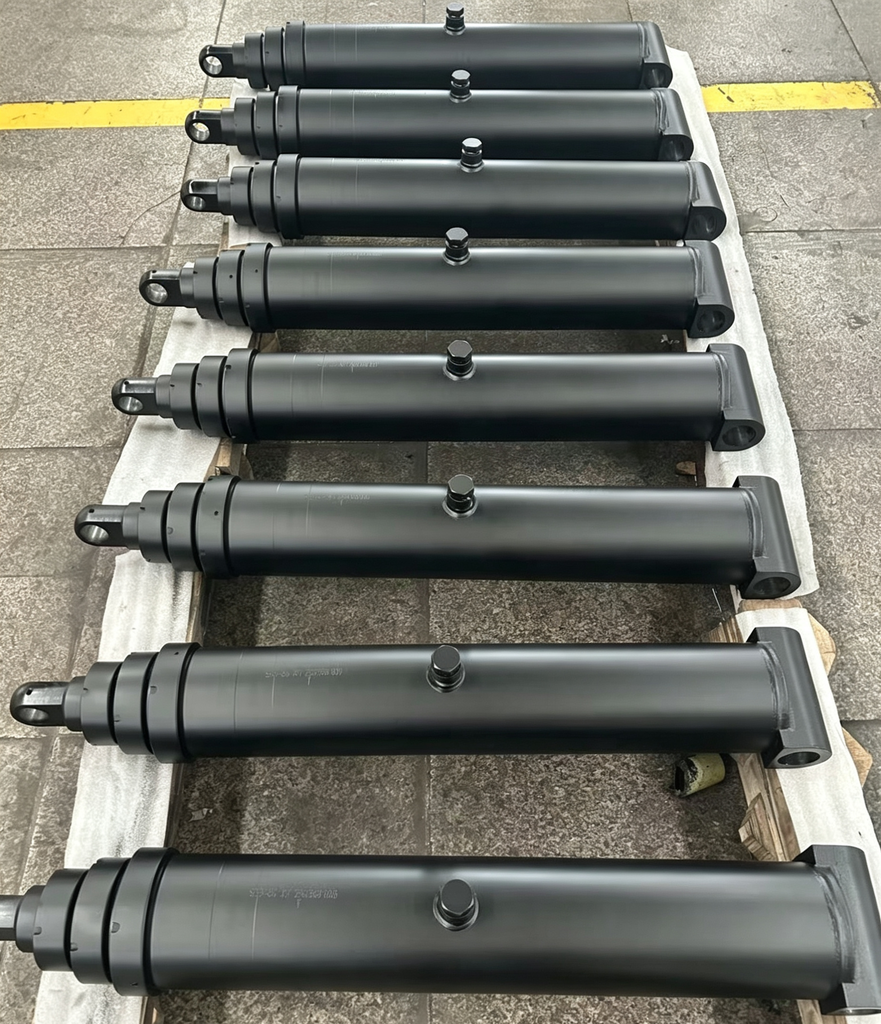

Commercial / Parker Replacement S53DC-65-107 SAT Dump Trailer Hydraulic Cylinders
This product has no valid combination.
Technical Specifications
General
| Fits Manufacturer | Commercial/Parker |
|---|---|
| Weight | 240.00 lbs |
Dimensions
| Telescopic Stages | 3 |
|---|---|
| Closed Length | 48.37 in |
| Open Extended Length | 155.930 in |
| Telescopic Stroke | 107 in |
| Largest Stage OD | 5.000 in |
Mounting
| Base End Mount Type | Cross-Tube |
|---|---|
| Base Mount Width | 7.000 in |
| Base Pin Size | 2.000 in |
| Rod End Mount Type | Drilled Thru Lug |
| Rod Mount Width | 2.000 in |
| Rod Pin Size | 1.750 in |
Ports
| Retract Port / Plunger | 1.00 NPT |
|---|
