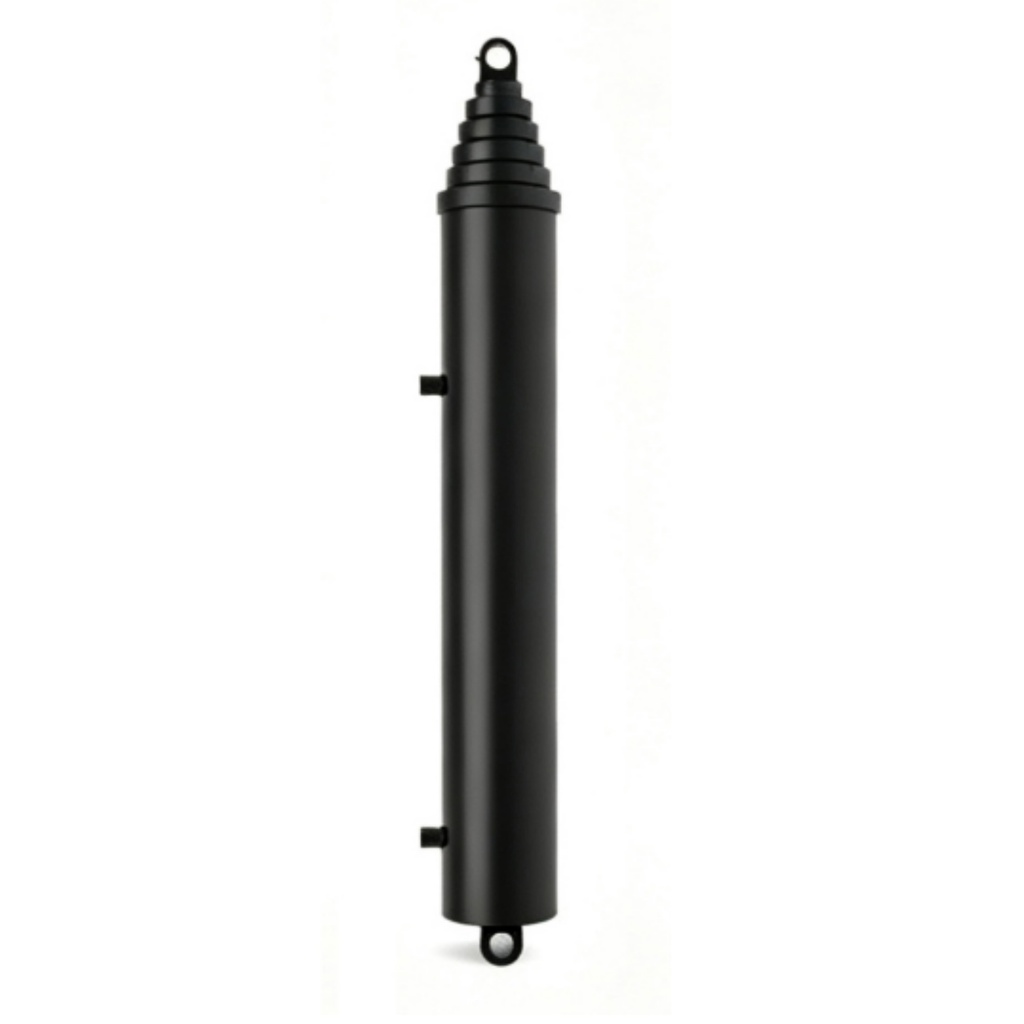

Commercial / Parker Replacement S125CC-1-390 SAT Truck Dumper Hydraulic Cylinders
This product has no valid combination.
Technical Specifications
General
| Fits Manufacturer | Commercial/Parker | Screw Conveyor Corp / Kewanee® |
|---|---|
| Weight | 3,540.00 lbs |
Dimensions
| Telescopic Stages | 5 |
|---|---|
| Closed Length | 121.5 in |
| Open Extended Length | 511.500 in |
| Telescopic Stroke | 390 in |
| Largest Stage OD | 12.000 in |
Mounting
| Base End Mount Type | Spherical Bearing |
|---|---|
| Base Mount Width | 2.750 in |
| Base Pin Size | 3.000 in |
| Rod End Mount Type | Spherical Bearing |
| Rod Mount Width | 2.750 in |
| Rod Pin Size | 3.000 in |
Ports
| Extend Port / Plunger | 1.25 NPT |
|---|
