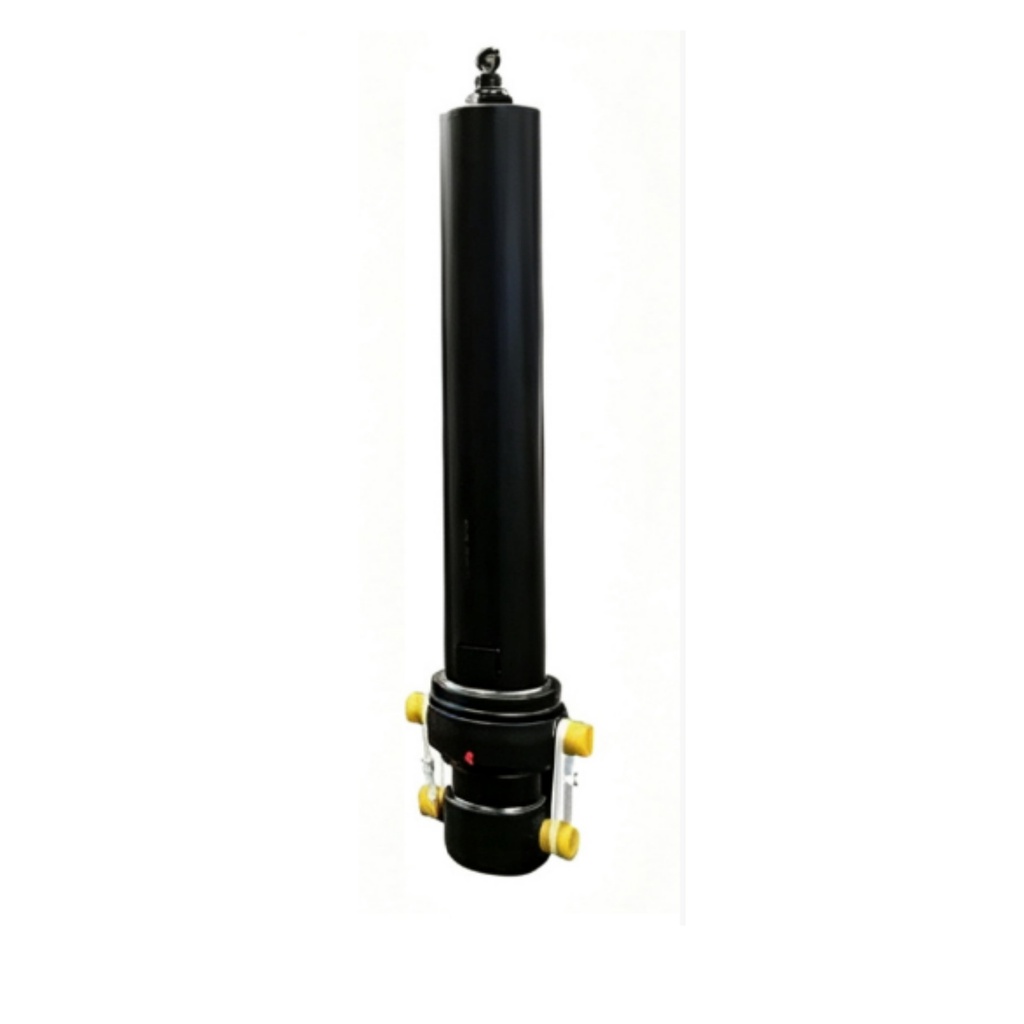

Mailhot Replacement PSD0450853MF0169 DAT Dump Hydraulic Cylinders
This product has no valid combination.
Technical Specifications
General
| Fits Manufacturer | Mailhot |
|---|---|
| Weight | 265.00 lbs |
Dimensions
| Telescopic Stages | 3 |
|---|---|
| Closed Length | 48 in |
| Open Extended Length | 133.000 in |
| Telescopic Stroke | 85 in |
| Largest Stage OD | 4.000 in |
Mounting
| Base End Mount Type | Trunnion |
|---|---|
| Rod End Mount Type | Trunnion |
Ports
| Extend Port / Plunger | -12 SAE ORB |
|---|---|
| Retract Port / Plunger | Out End Of Plunger |
Trunnion
| Trunnion Closed | 5.500 in |
|---|---|
| Trunnion Pin Diameter | 1.880 in |
| Trunnion Pin Length | 2.000 in |
| Trunnion Width | 9.750 in |
