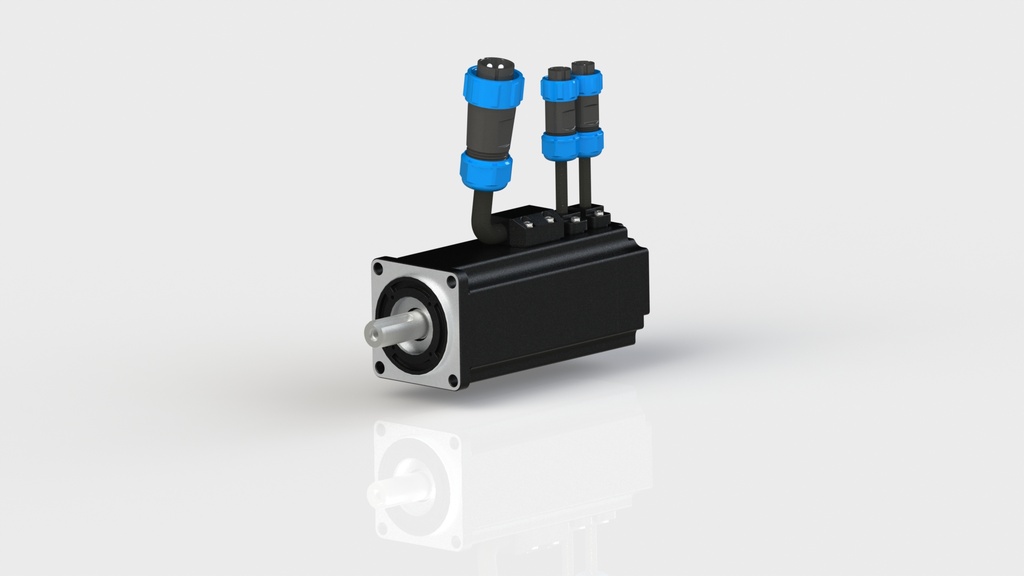

口60-600W,DC servo motor
Small size (industry's ultra-short dimension)
High protection (IP65/67 protection level)
Simple and elegant (black lustrous color & integrated structure)
Note: Other parameters such as voltage, torque and speed can be customized according to customer requirements.
Specifications
| Rated Voltage(V) | 48 |
| Rated Torque(N·m） | 1.91 |
| Rated Current(A) | 15 |
| Length (mm) | 138.1/108.6 |
| Color | Black |
| Encoder | M17/E23 |
| Brake | E/F |
| Power(W) | 600 |
| Frame | 60 |
| Connector Type | 3-Aircraft plug |
| Rated Rotate Speed(rpm) | 3000 |
